Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH163
Model Number: JSFU13160304
Payment & Shipping Terms
Minimum Order Quantity: 200 PCS
Price: Supportive
Packaging Details: Tray & Carton&Reel
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Designe PN#: |
JSFU13160304 |
Category: |
SMT FASTJack |
Interface: |
10/100Mbps |
LED: |
Flexible Designed |
Samples: |
Available |
Documents Available: |
PDF/3D/Step/IGS/Price/Cross |
Designe PN#: |
JSFU13160304 |
Category: |
SMT FASTJack |
Interface: |
10/100Mbps |
LED: |
Flexible Designed |
Samples: |
Available |
Documents Available: |
PDF/3D/Step/IGS/Price/Cross |

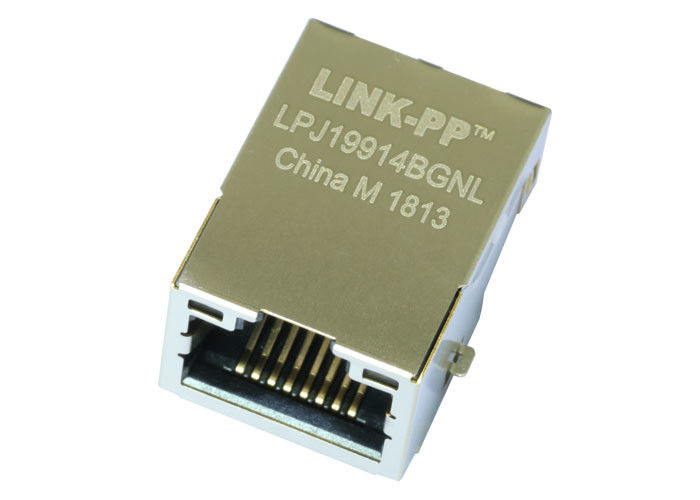

| SMD RJ45 Female Connector with 10/100 Base-T Integrated Magnetics,Yellow/Green LED,Tab Up,RoHS | |
| LINK-PP Part Number | LPJ19914BGNL |
| Other Part Number | JSFU13160304 |
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 4 |
| Diodes | NO DIODES |
| LED Option | YELLOW/GREEN |
| Latch | TAB UP |
| Number of Ports | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.447 |
| Package Height (mm) | 11.35 |
| Package Length (Inches) | 0.846 |
| Package Length (mm) | 21.50 |
| Package Width (Inches) | 0.610 |
| Package Width (mm) | 15.50 |
| Pin Type | SURFACE MOUNT |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Speed | 10/100 BASE-T |
| Temperature | -40 TO +85℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
