Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: 5631-S-K6-F-8C
Document: LPJE101CNL.pdf
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4200K-PCS/Month
Product Name: |
Single Port RJ45 Connector |
Cable System: |
Cat 5/5e |
Termination Style: |
Through Hole |
Gender: |
RJ45 Female |
Termination: |
Solder |
Application: |
Networking, Telecom, Signal |
Product Name: |
Single Port RJ45 Connector |
Cable System: |
Cat 5/5e |
Termination Style: |
Through Hole |
Gender: |
RJ45 Female |
Termination: |
Solder |
Application: |
Networking, Telecom, Signal |

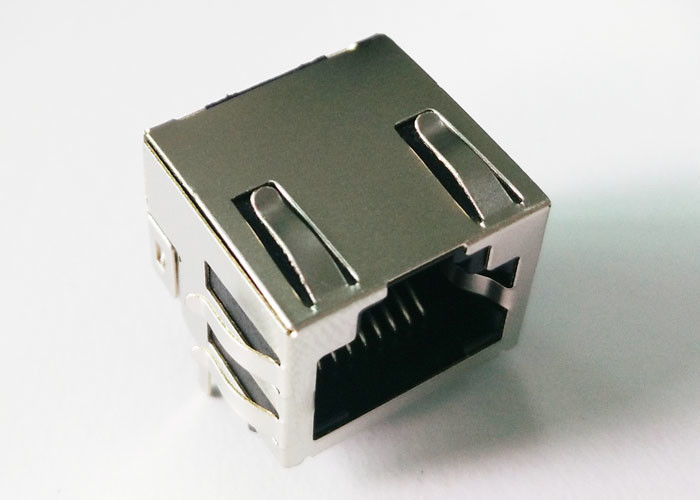

The 5631-S-K6-F-8C Shielded RJ45 Modular Jack (LINK-PP Part Number LPJE101CNL) is a single-port 8P8C RJ45 female connector without integrated magnetics, designed for Ethernet networking equipment requiring reliable signal integrity and EMI shielding.
This side-entry shielded RJ45 connector features EMI grounding fingers, gold-plated contacts, and THT solder mounting, making it suitable for high-reliability networking devices such as routers, switches, and LAN-on-Motherboard designs.
The connector supports standard Ethernet interfaces and is optimized for non-PoE networking applications where magnetics are implemented externally on the PCB.

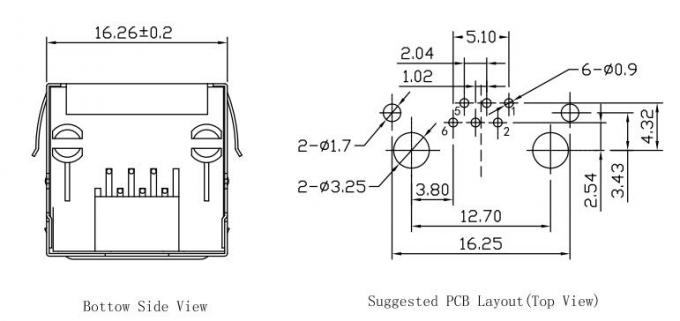

| Parameter | Specification |
|---|---|
| Part Number | LPJE101CNL |
| Alternative P/N | 5631-S-K6-F-8C |
| Connector Type | RJ45 Modular Jack |
| Port Configuration | 1 × 1 |
| Contact Position | 8P8C |
| Shielding | Shielded with EMI Fingers |
| Magnetics | Without Integrated Magnetics |
| LED | No LED |
| Mounting Type | Through Hole (THT) |
| PCB Mounting Angle | Side Entry |
| Latch Orientation | Tab Up |
| PCB Retaining Post | T-Post |
| Contact Plating | Gold 6µ"/15µ"/30µ" |
| Contact Material | Phosphor Bronze |
| Insulator Material | PBT |
| Flammability Rating | UL94-V0 |
| Mating Cycles | 500 |
| UL Certification | E324776 |
| Dimension | Inches | mm |
|---|---|---|
| Length | 0.620 | 15.75 |
| Width | 0.640 | 16.25 |
| Height | 0.516 | 13.10 |
| Parameter | Specification |
|---|---|
| Current Rating | 1.5 A |
| Working Voltage | 120 VAC |
| Insulation Resistance | ≥ 1000 MΩ |
| Contact Resistance | ≤ 20 mΩ |
| Dielectric Withstanding Voltage | 1000 VAC / 1 minute |
| Parameter | Specification |
|---|---|
| Operating Temperature | −40°C to +85°C |
| Compliance | RoHS Compliant |
| Soldering Process | JEDEC Lead-Free Wave Soldering |
The 5631-S-K6-F-8C shielded RJ45 connector is widely used in Ethernet networking and communication systems, including:
The LINK-PP LPJE101CNL is 100% compatible with 5631-S-K6-F-8C, offering a reliable drop-in replacement for existing Ethernet hardware designs without requiring PCB modifications.
LINK-PP provides a full portfolio of RJ45 connectors, integrated magnetics jacks (MagJack), LAN transformers, and high-speed Ethernet connectivity solutions for networking equipment manufacturers worldwide.
