YKU-8208ENL Shielded 1x1 Port Siemens RJ45 Connector Without Magnetic LPJE501DNL

China YKU-8208ENL Shielded 1x1 Port Siemens RJ45 Connector Without Magnetic LPJE501DNL supplier
YKU-8208ENL Shielded 1x1 Port Siemens RJ45 Connector Without Magnetic LPJE501DNL supplier YKU-8208ENL Shielded 1x1 Port Siemens RJ45 Connector Without Magnetic LPJE501DNL supplier

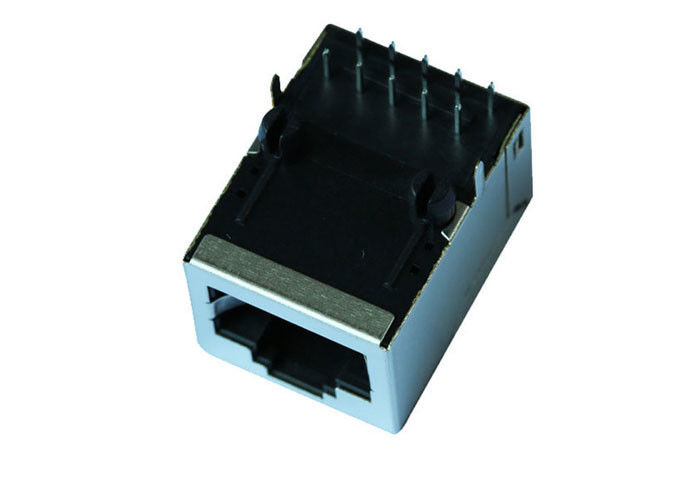

Large Image :  YKU-8208ENL Shielded 1x1 Port Siemens RJ45 Connector Without Magnetic LPJE501DNL

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: YKU-8208ENL

Payment & Shipping Terms:

Minimum Order Quantity: 200/500/1200
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 3-4 weeks
Payment Terms: TT,Paypa,West Union
Supply Ability: 4600K.PCS/Month
Contact Now
Detailed Product Description
Product Name: YKU-8208ENL Type: RJ45 Connector
TAB Direction: UP RoHS Compliant: Yes
LED Indicator: Without LED Sample: 1-3 Pcs Free

YKU-8208ENL Shielded 1x1 Port Siemens RJ45 Connector Without Magnetic LPJE501DNL



Shielded 1x1 Port Siemens RJ45 Connector without Integrated Magnetics ,Without LED,Tab UP,RoHS
LINK-PP Part Number LPJE501DNL
Other Part Number YKU-8208ENL
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port -
Diodes NO DIODES
LED Option Without LEDs
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.530
Package Height (mm) 13.45
Package Length (Inches) 0.837
Package Length (mm) 21.25
Package Width (Inches) 0.628
Package Width (mm) 15.95
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs Without
Speed Without Magnetics
Temperature -40 TO + 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
