Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH163
Model Number: JGL-0004NL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25Kpcs
Price: $1.1-$10
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 2500K/Month
Part Number: |
JGL-0004NL |
Data Rate: |
10/100/1000 Base-T, AutoMDIX |
Number Of Ports: |
1x2 Dual Ports |
Connection Style: |
Side Entry, Latch-up |
LED Colors: |
GREEN & GREEN/AMBER |
Mounting: |
THT |
EMI / Gasket: |
YES |
Length (mm): |
26.06 |
Width (mm): |
34.65 |
Height (mm): |
11.3 |
Part Number: |
JGL-0004NL |
Data Rate: |
10/100/1000 Base-T, AutoMDIX |
Number Of Ports: |
1x2 Dual Ports |
Connection Style: |
Side Entry, Latch-up |
LED Colors: |
GREEN & GREEN/AMBER |
Mounting: |
THT |
EMI / Gasket: |
YES |
Length (mm): |
26.06 |
Width (mm): |
34.65 |
Height (mm): |
11.3 |
| Shielded 1x2 Port RJ45 Magjack Connector with 1000 Base-T Integrated Magnetics | |
| LINK-PP Part Number | LPJK25003A26NL |
| Pulse Part Number | JGL-0004NL |
| Type | Magnetic Jack |
| PoE | NoN-PoE |
| AutomDX | YES |
| Automotive | NO |
| Port Configuration | 1x2 |
| Number of Positions / Contacts per Port | 8P8C |
| Shielding | Shielded, EMI Fingers |
| Applications | 10/100/1000 Base-T |
| Features | Board Guide |
| Mounting Type | Through Hole |
| Tab Direction | UP |
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| LED Color | Green - Green, Amber |
| Operating Temperature | 0°C ~ 70°C |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Contact Finish Thickness | 50.0µin (1.27µm) |
| Shield Material | Brass |
| Housing Material | Thermoplastic |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |

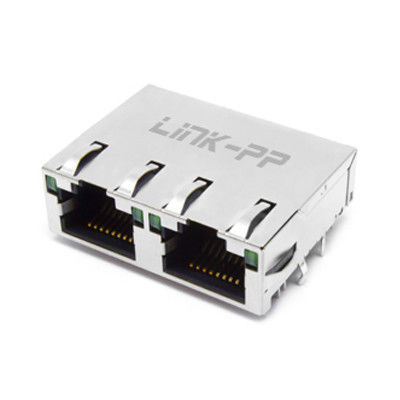

The JGL-0004NL is a low-profile RJ45 connector featuring a dual-port (1x2) configuration with tab-up direction. It supports gigabit Ethernet speeds and is integrated with magnetics for enhanced signal integrity and reduced electromagnetic interference. This Dual Port RJ45 Connector ensures reliable and efficient data transfer for servers, PCI-Express cards, and network switches.
Features and Benefits:
1. RoHS peak wave solder temperature rating 260°C
2. Low height and small footprint to minimize board space
Electrical Performance Summary:
1. Meets IEEE 802.3 specification
2. 350µH minimum OCL with 8mA bias current
3. High performance for maximum EMI suppression
