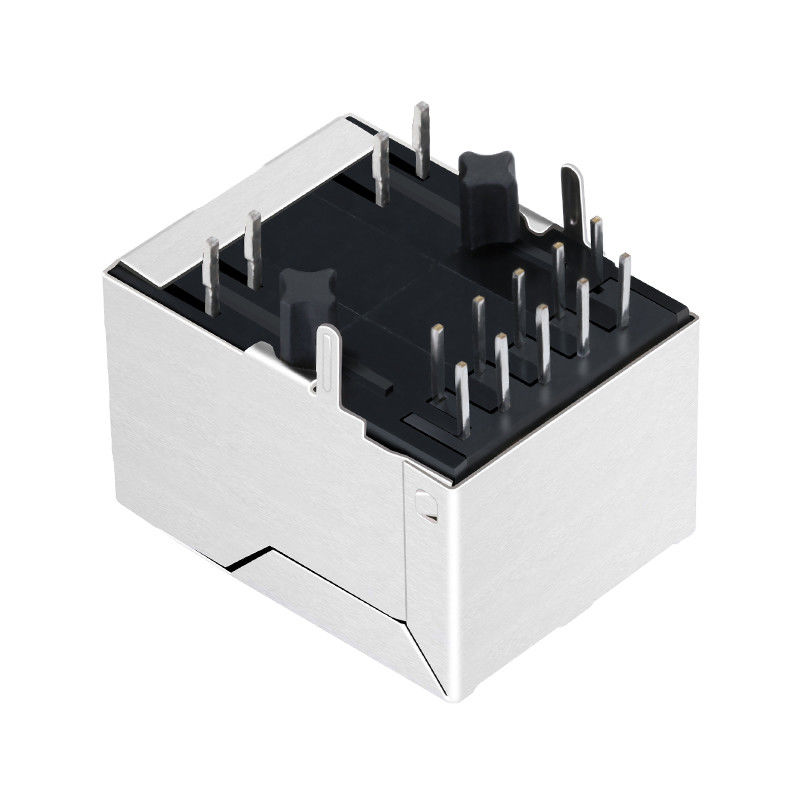

LPJG0926-9HENL Single Port RJ45 Power Over Ethernet Connector With 1000 Base-T 2337992-8

China LPJG0926-9HENL Single Port RJ45 Power Over Ethernet Connector With 1000 Base-T 2337992-8 supplier
LPJG0926-9HENL Single Port RJ45 Power Over Ethernet Connector With 1000 Base-T 2337992-8 supplier LPJG0926-9HENL Single Port RJ45 Power Over Ethernet Connector With 1000 Base-T 2337992-8 supplier LPJG0926-9HENL Single Port RJ45 Power Over Ethernet Connector With 1000 Base-T 2337992-8 supplier

Large Image :  LPJG0926-9HENL Single Port RJ45 Power Over Ethernet Connector With 1000 Base-T 2337992-8

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: 2337992-8

Payment & Shipping Terms:

Minimum Order Quantity: 50/500/5000
Price: Supportive
Packaging Details: Optional (60pcs/try);960/box
Delivery Time: Stock or 30 work days
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Bel Spec: 2337992-8 Ethernet: 10/100 Base-T
Samples: Available RJ45 Connector: 1X1 With POE+
File: PDF/3D/ISG/Stp/Step/Datasheet LED: Green?Yellow LED

LPJG0926-9HENL Single Port POE+ RJ45 Connector With 1000 Base-T 2337992-8





LINK-PP Part Number LPJG0926-9HENL
Other Part Number 2337992-8
Application-Lan ETHERNET(PoE+)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 4
Diodes YES
LED Option Green / Yellow
Latch TAB Up
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.529
Package Height (mm) 13.45
Package Length (Inches) 0.837
Package Length (mm) 21.25
Package Width (Inches) 0.628
Package Width (mm) 15.95
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs Without
Speed 10/100/1000 Base-T
Temperature 0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



Why Choose Us


World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers



100% Guarantee Qualtiy

• Manufactured Under Strict Controls.

• 100% Tested (Not Just Batch Tested)

• LINK-PP Is OEM Of TE (Tyco) For 9 Years

• Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…



LINK-PP Corporate Policy

• The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction

Through Continuous Improvements In Quality, Delivery And Service

• LINK-PP Is Committed To And Expects Quality Performance From Every Employee

• The Company Standard Is Defect-Free Products And Services



Successful Customer:

• Texas Instruments

LINK-PP is the preferred supplier of TI. Welcome to visit the TI website, you will look at our logo "LINK-PP" on BeagleBone Board.



LPJG0926-9HENL Single Port RJ45 Power Over Ethernet Connector With 1000 Base-T 2337992-8 0

Factory

LPJG0926-9HENL Single Port RJ45 Power Over Ethernet Connector With 1000 Base-T 2337992-8 1



FAQ



Q: How long Delivery time ?

A: RJ45/RJ11 Series: 12~20 days

SFP Series: 25~30 Days

USB Series: 7~15 days

Connector: 7~15 days

Q: How can I get quotation?

A: It is helpful for us to recommend the right item if we know your detail requirements

(number of port, shielded or non-shielded, led or dual leds, with or without transformer etc).

Drawing and quotation will be sent accordingly. Of course, it is best if we have your drawing.

Q: Can I have samples?

A: Samples are available for evaluation.

Q: Is OEM & ODM available?

A: OEM&ODM are welcome.
