LPJ4026AANL RJ45 Modular Jack Cross XRJG-01K-1-E13-211 Lan 10/100M SGS Approved

China LPJ4026AANL RJ45 Modular Jack Cross XRJG-01K-1-E13-211 Lan 10/100M SGS Approved supplier
LPJ4026AANL RJ45 Modular Jack Cross XRJG-01K-1-E13-211 Lan 10/100M SGS Approved supplier LPJ4026AANL RJ45 Modular Jack Cross XRJG-01K-1-E13-211 Lan 10/100M SGS Approved supplier

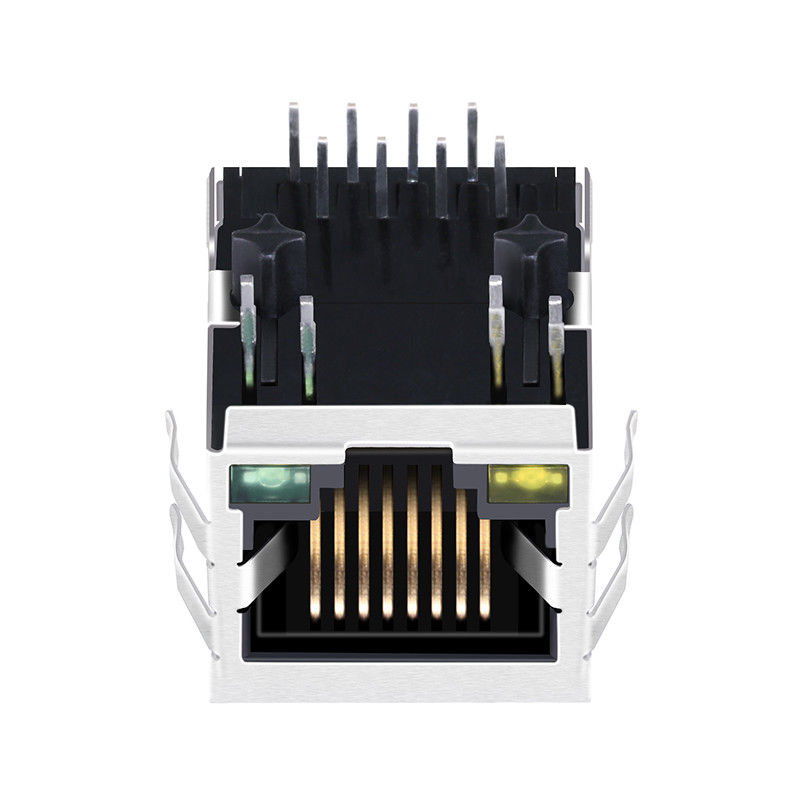

Large Image :  LPJ4026AANL RJ45 Modular Jack Cross XRJG-01K-1-E13-211 Lan 10/100M SGS Approved

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: XRJG-01K-1-E13-211

Payment & Shipping Terms:

Minimum Order Quantity: 200/500//1200
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 4 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 4200K-PCS/Month
Contact Now
Detailed Product Description
Part Number: XRJG-01K-1-E13-211 China Manufacturer: LINK-PP
Termination: Solder Latch: Tab Down
Samples: Available 1-5 Pcs File: PDF/3D/ISG/Stp/Step/Datasheet

LPJ4026AANL Cross XRJG-01K-1-E13-211 Lan 10/100M RJ45 Modular Jack Interface





  • XRJG-01K-1-E13-211 Cross
  • RJ45 Modular Jack
  • Shielded with Filter Magnetic RJ45 Jack For CCTV/industrial cameras
  • High performance for maximum EMI suppression.
  • LAN interface suitable for 10/100Base-TX for Communication Controllers or Control Processors
  • Designed for network interface card application and Network Adapter
  • Original materials are RoHS and UL94-V0 compliant
  • ISO9001,SGS,UL,CE,REACH
  • Cross LPJ4026AANL
Shielded 1x1 Port RJ45 Female Connector with 10/100 Base-T Integrated Magnetics, Yellow/Green LED,Tab Down,RoHS
LINK-PP Part Number LPJ4026AANL
X multiple Part Number XRJG-01K-1-E13-211
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 4
Diodes No
LED Option Yellow/Green
Latch TAB Down
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.524
Package Height (mm) 13.30
Package Length (Inches) 0.837
Package Length (mm) 21.25
Package Width (Inches) 0.627
Package Width (mm) 15.93
Pin Type THT SOLDER
RoHS Compliant YES
Search YES
Shield EMI Tabs With
Speed 10/100 Base-T
Temperature -40 TO + 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT




LPJ4026AANL RJ45 Modular Jack Cross XRJG-01K-1-E13-211 Lan 10/100M SGS Approved

LPJ4026AANL RJ45 Modular Jack Cross XRJG-01K-1-E13-211 Lan 10/100M SGS Approved



FAQ

1. Are you the real manufacturer?

Yes. We are the real manufacturer since 1997.

2. Can you accept small order?

Yes, small order is available .We support new project of our customers as we know business is always from

small order.

3. Which kind of certification you have ?

ISO9001, SGS, UL, RoHs.

4. What is your delivery time?

Usually within 2-3 working days

5. What is your payment way?

T/T, L/C, D/P,MoneyGram,Western Union and Paypal.

6 .Can you supply customized products and logo?

Yes. We supply OEM&ODM service. You can send us your drawing.
