Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL file E484635; RoHS marking (per LPJE169AENL drawing)
Model Number: XMK-9758-8813-S0L1-H
Document: LPJE169AENL.pdf
Payment & Shipping Terms
Minimum Order Quantity: 20pcs
Price: Negotiable
Packaging Details: 20pcs/Tray or Reel
Delivery Time: Confirm availability
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 100K-PCS/Month
Reference Part Number: |
XMK-9758-8813-S0L1-H |
Products Type: |
Low-Profile RJ45 Jack |
LINK-PP Part Number: |
LPJE169AENL |
LED Status: |
Left Green / Right Yellow |
Latch Orientation: |
Tab-Down |
Contact Matrix: |
8P8C (CAT 5e) |
Magnetics: |
Non-Magnetic (Modular Jack) |
Shielding: |
Copper Alloy W/ EMI Tabs |
Operating Temp: |
-40°C To +85°C |
Dielectric Strength: |
1000V AC / 1m |
Durability: |
750 Mating Cycles MIN. |
Environmental: |
RoHS & REACH Compliant |
Reference Part Number: |
XMK-9758-8813-S0L1-H |
Products Type: |
Low-Profile RJ45 Jack |
LINK-PP Part Number: |
LPJE169AENL |
LED Status: |
Left Green / Right Yellow |
Latch Orientation: |
Tab-Down |
Contact Matrix: |
8P8C (CAT 5e) |
Magnetics: |
Non-Magnetic (Modular Jack) |
Shielding: |
Copper Alloy W/ EMI Tabs |
Operating Temp: |
-40°C To +85°C |
Dielectric Strength: |
1000V AC / 1m |
Durability: |
750 Mating Cycles MIN. |
Environmental: |
RoHS & REACH Compliant |

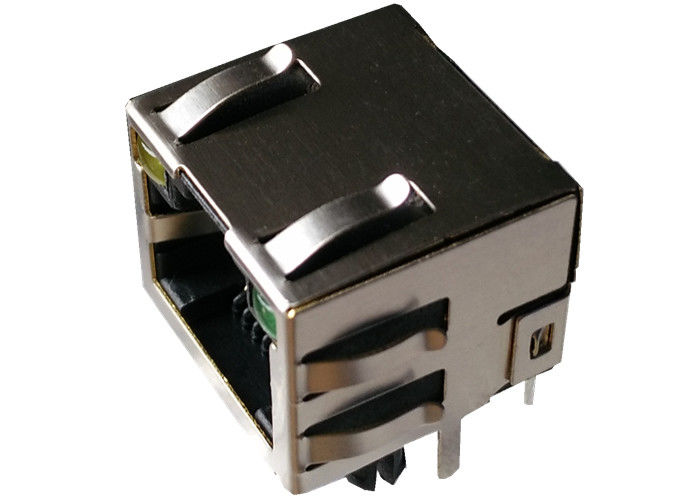

The LINK-PP LPJE169AENL is a shielded single-port RJ45 connector with green and yellow LEDs. Its drawing specifies a side-entry, through-hole layout and a low-profile body. The listing also references XMK-9758-8813-S0L1-H; verify the complete mechanical and electrical requirements before selecting a replacement.
For engineers checking RJ45 port dimensions, the LPJE169AENL drawing specifies a nominal body width of 16.25 ±0.25 mm, length of 15.2 mm and height of 11.3 mm. The recommended panel cutout is 17.3 × 12.3 mm. The recommended PCB layout is shown in top view and includes twelve Ø0.90 mm holes and two Ø1.80 mm holes. Use the complete drawing and its tolerances to verify board and enclosure fit.
| LINK-PP part number | LPJE169AENL |
|---|---|
| Reference part number | XMK-9758-8813-S0L1-H |
| Configuration | 1×1 shielded RJ45 connector; side entry, through-hole |
| LEDs | Left green / right yellow |
| Body dimensions | 15.2 mm length × 16.25 ±0.25 mm width × 11.3 mm height |
| Recommended panel opening | 17.3 × 12.3 mm, per drawing |
| Voltage / current rating | 125 V AC / 1.5 A |
| Contact resistance | 50 mΩ maximum |
| Insulation resistance | 500 MΩ minimum at 500 V DC |
| Dielectric strength | 1000 V AC, 50 or 60 Hz, 1 minute |
| Operating / storage temperature | −40°C to +85°C |
| Operating life | 750 cycles minimum |
| Contact plating | Gold flash in contact area |
| Shield | 0.20 mm copper alloy, nickel plated |
| Housing | Black PBT, UL94V-0 |
| Wave solder | Tip temperature 250°C, 5 seconds, per drawing |
| Drawing | LP23021710, Rev. A, 2023-07-18 |
The drawing identifies pins 9 and 10 for the left green LED and pins 11 and 12 for the right yellow LED. Green wavelength is 565 nm and yellow is 585 nm; both are specified at 1.8–2.6 V forward voltage at 20 mA. Check polarity and connections against the schematic before PCB layout.
The supplied drawing states UL file E484635 and carries a RoHS 2011/65/EU marking. Request current compliance documentation for the supplied part.
Compare the footprint, panel opening, latch orientation, contact arrangement, LED polarity, electrical ratings and environmental conditions with your design. The drawing does not specify integrated magnetics, PoE support or an Ethernet speed rating; confirm system requirements before ordering. Contact LINK-PP with LPJE169AENL, the reference part number and quantity to request the drawing, availability and quotation.
The drawing specifies a 15.2 mm body length, 16.25 ±0.25 mm width and 11.3 mm height. Check the drawing for tolerances and details.
The listing references that part number. Compatibility has not been established by the supplied drawing alone; compare both drawings and verify fit, pinout, LEDs and electrical ratings.
The supplied mechanical drawing does not specify integrated magnetics. Confirm the required magnetics and Ethernet performance with LINK-PP for your design.
