ARJE-0030 Rj45 Modular Jack 1000Base-T LPJK0072AINL Right Angle

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: ARJE-0030

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.05-$1.28

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4200K-PCS/Month

Get Best Price
Highlight:

EMI Shielding Rj45 Modular Jack

,

Copper Alloy Rj45 Modular Jack

,

1000Base-T Through Hole RJ45 Modular

PN:
ARJE-0030
Made In China:
SM-LPJK0072AINL
Ethernet:
1000Base-T GE
Samples:
Free Available
Application-Lan:
ETHERNET ( NoN PoE )
Cores Per Port:
8
PN:
ARJE-0030
Made In China:
SM-LPJK0072AINL
Ethernet:
1000Base-T GE
Samples:
Free Available
Application-Lan:
ETHERNET ( NoN PoE )
Cores Per Port:
8
ARJE-0030 Rj45 Modular Jack 1000Base-T LPJK0072AINL Right Angle
ARJE-0030 Right Angle Rj45 Modular Jack With 1000 Base-T LPJK0072AINL



1. LPJK0072AINL Pin To Pin ARJE-0030

2. Gigabit Rj45 Modular Jack

3. Documents Available : PDF / 3D / Step / IGS / Price / Cross

4. Samples : Free ​available

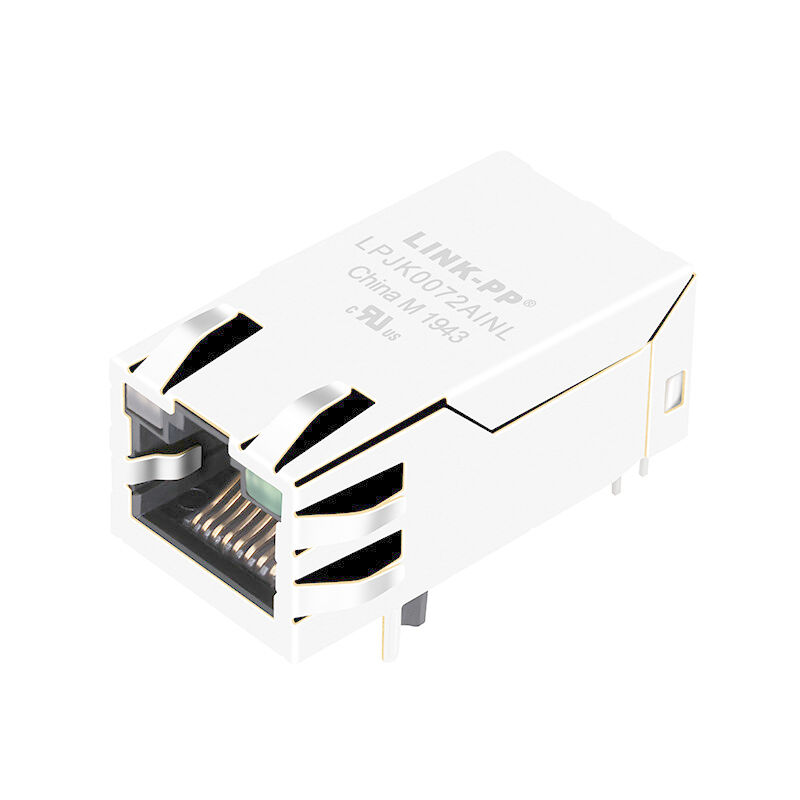

ARJE-0030 Rj45 Modular Jack 1000Base-T LPJK0072AINL Right Angle 0

LINK-PP Part Number ARJE-0030
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option Yellow&Green/Green LED
Shielding Shielded, EMI Finger
Mounting Type Through Hole
Orientation 90° Angle (Right)
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
Contact Material Copper Alloy
PCB Retaining Post T POST
Package Height (Inches) 0.531
Package Height (mm) 13.5
Package Length (Inches) 1.28
Package Length (mm) 32.5
Package Width (Inches) 0.654
Package Width (mm) 16.6
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 10/100/1000 BASE-T, AutoMDIX
Temperature 0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
