Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: JT7-1119NL
Document: LPJK9093AONL.pdf
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.5-$2.3
Packaging Details: Tray
Delivery Time: In Stock Ship Within 3 Days
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 500K/Month
Part Number: |
JT7-1119NL |
Compatible P/N: |
LPJK9093AONL |
Products Type: |
10GBASE-T RJ45 MagJack |
Port Configuration: |
1×1 Single Port |
Mounting Style: |
Through Hole (THT) |
PoE Capability: |
4-Pair PoE, 90W |
Isolation Voltage: |
2250 VDC |
Contact Plating: |
50µ" Gold |
Part Number: |
JT7-1119NL |
Compatible P/N: |
LPJK9093AONL |
Products Type: |
10GBASE-T RJ45 MagJack |
Port Configuration: |
1×1 Single Port |
Mounting Style: |
Through Hole (THT) |
PoE Capability: |
4-Pair PoE, 90W |
Isolation Voltage: |
2250 VDC |
Contact Plating: |
50µ" Gold |

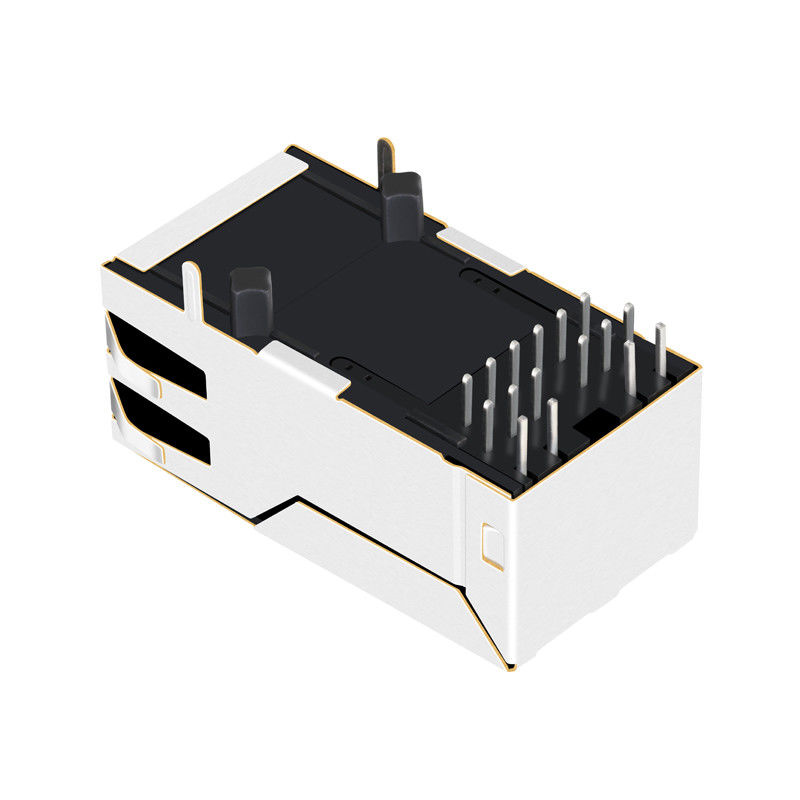

JT7-1119NL is a 1x1 10GBASE-T RJ45 connector with integrated magnetics, 90W 4-pair PoE support, 2250V isolation, Green/Yellow & Green LEDs, and IEEE 802.3 compliance. Ideal for switches, servers, industrial Ethernet, and PoE networking equipment.
The JT7-1119NL by Pulse Electronics is a premium, high-performance 10GBASE-T RJ45 Connector designed for next-generation networking equipment. Featuring a 1x1 single-port configuration, integrated magnetics, and robust 4-Pair 90W PoE capabilities, this side-entry Through-Hole Technology (THT) connector is engineered to meet the strict demands of IEEE 802.3 specifications. With superior EMI shielding, 50µ" gold contact plating for maximum durability, and a compact right-angle footprint, the JT7-1119NL is the ideal solution for high-speed servers, switches, routers, and base stations.
The JT7-1119NL supports modern Power over Ethernet deployments requiring significantly higher power delivery than traditional PoE solutions.
| Parameter | Value |
| PoE Type | 4-Pair PoE |
| Maximum Power | 90W |
| Continuous Current | 900 mA per pair |
| Surge Current | 1A per pair for 75 ms |
| Category | Specification | Details |
|---|---|---|
| General & Mechanical | Part Number | JT7-1119NL |
| Number of Ports | 1x1 (Single Port) | |
| Speed | 10GBASE-T | |
| Package Type | THT (Through-Hole Technology) | |
| PCB Mount Angle | Side Entry (Right Angle) | |
| Latch Orientation | Latch UP | |
| Dimensions (L × W × H) | 34.29 mm × 16.51 mm × 13.33 mm (1.350" × .650" × .525") | |
| Pin Length | 3.43 mm (.135") | |
| Panel Cutout | 17.27 mm × 13.72 mm (.680" × .540") | |
| Electrical Characteristics | Turns Ratio | 1:1 (1.00 ± 2%) |
| Inductance (OCL) | 120 µH MIN @ 100 kHz, 100 mV | |
| PoE Rating | 4-Pair PoE, 90W (900 mA MAX continuous current per twisted pair) | |
| Input-Output Isolation | 2250 VDC MIN @ 60 Seconds | |
| Insertion Loss | -3.0 dB MAX @ 100 KHz; -2.0 dB MAX (-1.4 dB TYP) @ 1~400 MHz |
|
| Return Loss (Z OUT = 100 OHM ± 1%) | -22 dB MIN @ 1~100 MHz; -22 + 20.75×LOG(f/100) dB MIN @ 100~500 MHz |
|
| Crosstalk (Adjacent Channels) | -28 dB MIN (1~100 MHz) -19 dB MIN (100~500 MHz) |
|
| Common Mode Rejection Ratio (CMRR) | -26 dB MIN @ 100~500 MHz | |
| Materials & Plating | Contact Mating Area Plating | 50 µ'' Gold (Au) over 50 µ'' MIN Nickel (Ni) underplate |
| Solder Tail Plating | 200–500 µ'' 100% Matte Tin | |
| Contacts Base Material | Phosphor Bronze | |
| Plastic Housing | Thermoplastic Material, UL 94V-0 Flammability Rating | |
| Metal Shield | Copper Alloy with Nickel Plating | |
| LED Configuration | Left LED | Bi-Color Green/Yellow (565–575 nm / 585–595 nm) |
| Right LED | Single-Color Green (568 nm) | |
| Forward Voltage (VF) | 2.1V ~ 2.7V @ 20mA | |
| Power Dissipation (Pd) | 105 mW MAX (Left) / 68 mW MAX (Right) | |
| Environmental & Soldering | Operating Temperature | 0°C to +70°C |
| Storage Temperature | -20°C to +125°C | |
| RoHS Status | YES, RoHS-6 Compliant | |
| Solderability (J-STD-002) | 245°C Dip and Look Test compliant | |
| Wave Soldering (J-STD-075) | W2, 270°C Maximum through Wave Solder | |
| Moisture Sensitivity (J-STD-020) |
Level 1 (MSL 1 - No moisture sensitive) |
The JT7-1119NL 90W PoE RJ45 connector includes integrated status LEDs for simplified network diagnostics.
| LED Position | Color | Typical Function |
| Left LED | Green | Link Activity |
| Left LED | Yellow | Speed/Status |
| Right LED | Green | Power/Link Status |
| Parameter | Green (Left) | Yellow (Left) | Green (Right) |
| Wavelength | 565-575 nm | 585-595 nm | 568 nm |
| Max Power Dissipation | 105 mW | 105 mW | 68 mW |
| Peak Forward Current | 140 mA | 140 mA | 150 mA |
| Forward Voltage @20mA | 2.2-2.5V | 2.1-2.5V |
2.2-2.7V |
The JT7-1119NL complies with:
| Parameter | Value |
| Operating Temperature | 0°C to +70°C |
| Storage Temperature | -20°C to +125°C |
| Moisture Sensitivity | Level 1 |
| Wave Solder Temperature | Up to 270°C |
Looking for a reliable 10GBASE-T RJ45 connector with integrated magnetics and 90W PoE support?
The JT7-1119NL provides excellent signal integrity, robust isolation protection, and proven Ethernet performance for demanding networking applications. Contact our engineering and sales team today for pricing, samples, datasheets, PCB recommendations, and volume production support.
JT7-1119NL is a single-port 10GBASE-T RJ45 connector with integrated magnetics designed for high-speed Ethernet networking equipment requiring 10 Gigabit performance and PoE support.
Yes. The connector supports 4-pair PoE with power delivery up to 90W, making it suitable for PoE++ applications.
The integrated magnetic module provides a minimum isolation voltage of 2250VDC for 60 seconds.
Yes. The product is fully compliant with RoHS-6 environmental requirements.
It is commonly deployed in switches, routers, access points, industrial Ethernet devices, surveillance systems, and other 10 Gigabit networking equipment.
