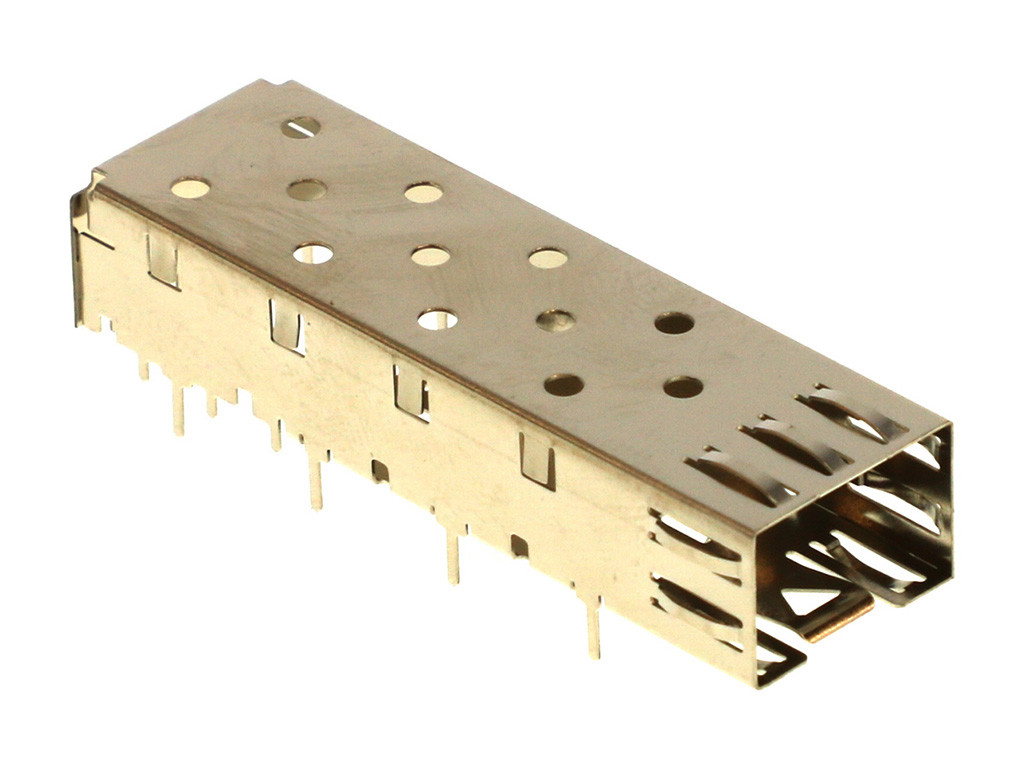

74737-0010 Through Hole SFP+ Cage Connector Equivalent To LP11F012

747370010/74737-0010 ​SFP 1X1 Cage with EMI Spring Finger

The 747370010 SFP cage is a high-speed, one-piece EMI-shielded cage assembly designed for 10Gbps SFP/SFP+ applications. With a 1x1 port configuration, 3.38mm solder post tails, and robust EMI shielding design, this cage is optimized for reliable module-to-board connectivity in networking, telecom, and data center equipment.

For engineers and buyers searching for the 747370010 datasheet, mechanical details, or SFP cage compatibility, this page provides a complete technical overview to support design decisions and sourcing.

Key Features of 747370010 SFP Cage

• Supports data rates up to 10Gbps (SFP+)
• One-piece cage design for improved mechanical stability
• Integrated EMI shielding for signal integrity
• 3.38mm solder post tails for secure PCB mounting
• 1x1 port configuration
• Horizontal orientation for standard layouts
• Through-hole termination for reliable assembly
• Copper alloy construction for durability
• Closed top design for enhanced shielding

Specifications 747370010/74737-0010 High-Speed EMI Cages:

747370010 Drawings:

Applications of Molex 747370010 SFP Cage:

The 747370010 SFP cage is engineered to support up to 10Gbps data rates, making it suitable for:

• SFP+ optical modules
• High-speed Ethernet ports
• Data center switching equipment
• Telecom infrastructure

At these speeds, signal integrity and EMI control are critical, which is why the cage includes spring finger shielding to minimize electromagnetic interference.

74737-0010 One-Piece Cage Structure Advantages

Compared to multi-piece cages, the one-piece design offers:

• Better mechanical strength
• Simplified assembly process
• Improved EMI continuity
• Reduced risk of misalignment

For engineers, this means higher reliability and easier manufacturing integration.

FAQs About 74737-0010 Through Hole SFP+ Cage Connector


The 747370010 SFP cage is a reliable choice for 10Gbps SFP+ applications, offering strong EMI shielding, durable one-piece construction, and stable PCB mounting. Its design supports high-speed data transmission while ensuring mechanical reliability and compliance with modern networking requirements.


1. What is the 747370010 SFP cage?

The 747370010 is a one-piece SFP cage designed for 10Gbps applications, providing mechanical housing and EMI shielding for SFP/SFP+ modules in module-to-board connections.

2. What data rate does 747370010 support?

The 747370010 SFP cage supports data rates up to 10Gbps, making it suitable for SFP+ high-speed Ethernet and optical communication applications.

3. Does 747370010 provide EMI shielding?

Yes, the 747370010 includes integrated EMI shielding with spring fingers and a closed-top design, helping reduce electromagnetic interference and maintain signal integrity.

4. What is the mounting type of 747370010?

The 747370010 uses a through-hole mounting style with 3.38mm solder post tails, providing strong PCB attachment and reliable grounding.

5. Is 747370010 compatible with SFP+ modules?

Yes, the 747370010 is compatible with standard SFP and SFP+ modules designed for up to 10Gbps operation.

6. What is the port configuration of 747370010?

The 747370010 features a 1x1 port configuration, meaning it supports a single SFP module per cage.

7. What are the advantages of a one-piece SFP cage?

A one-piece SFP cage offers better mechanical strength, improved EMI shielding continuity, and simpler assembly compared to multi-piece designs.
