Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: 2007464-1
Payment & Shipping Terms
Minimum Order Quantity: 10/100/25K
Price: $2,4
Packaging Details: 20/Tray
Delivery Time: 5-8 working days
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 350K/Month
Part Number: |
2007464-1 |
Product Type: |
Cage Assembly |
Pluggable Form Factor: |
SFP+ |
Number Of Ports: |
1 X 1 |
Heat Sink: |
With |
EMI Springs: |
With |
Part Number: |
2007464-1 |
Product Type: |
Cage Assembly |
Pluggable Form Factor: |
SFP+ |
Number Of Ports: |
1 X 1 |
Heat Sink: |
With |
EMI Springs: |
With |

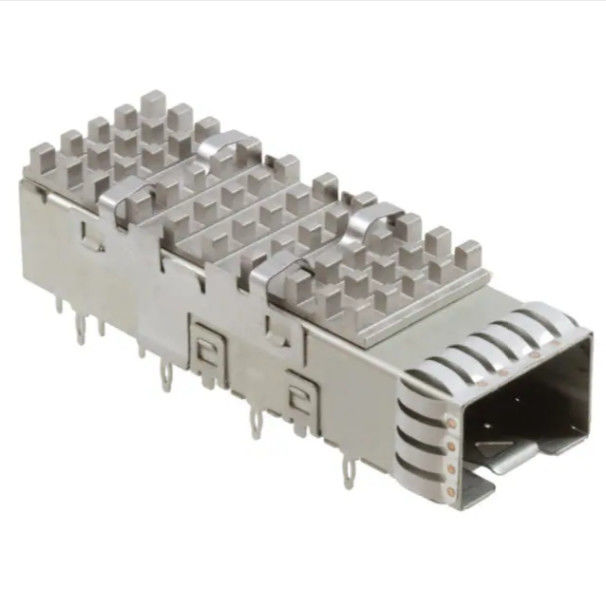

The 2007464-1 SFP+ Cage Assembly is a high-performance 1x1 SFP+ cage assembly designed for demanding signal applications that require reliable mechanical support, effective EMI containment, and thermal efficiency. Built with a press-fit through-hole termination method and supplied with a pin-style heatsink, this cage assembly supports data rates up to 16 Gb/s and is well suited for high-speed networking equipment.
With its nickel silver cage material, internal/external EMI springs, and wide operating temperature range of -55°C to 105°C, the 2007464-1 delivers the durability and electrical integrity expected in professional-grade SFP+ designs.
| Item | Specification |
|---|---|
| Part Number | 2007464-1 |
| Product Type | SFP+ Cage Assembly |
| Form Factor | SFP+ |
| Configuration | 1 x 1 |
| Ports | 1 |
| Maximum Data Rate | 16 Gb/s |
| Termination Method | Through Hole - Press-Fit |
| Cage Material | Nickel Silver |
| Heat Sink Included | Yes |
| Heat Sink Height | 4.2 mm |
| Operating Temperature Range | -55°C to 105°C |
| Packaging | Tray |
| Lightpipe | No |
| EMI Containment | Internal/External EMI Springs |
If you are sourcing a dependable SFP+ cage assembly with heatsink, the 2007464-1 offers a strong combination of high-speed support, thermal management, and EMI protection for modern networking applications.
The 2007464-1 is an SFP+ cage assembly used to support SFP+ transceivers in high-speed networking equipment.
Yes. It includes a pin-style heatsink with a height of 4.2 mm.
The maximum supported data rate is 16 Gb/s.
It uses through-hole press-fit termination.
Yes. It supports an operating temperature range of -55°C to 105°C.
