Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: 2274001-1
Payment & Shipping Terms
Minimum Order Quantity: 10/100/25K
Price: $3.1
Packaging Details: 20/Tray
Delivery Time: In Stock Ship Within 3 Days
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 350K/Month
P/N: |
2274001-1 |
Form Factor: |
ZSFP+ (Single Port / 1x1 Matrix) |
Maximum Data Rate: |
32 Gb/s |
Termination Method: |
Through Hole - Press-Fit |
Operating Temperature: |
-55°C To 105°C [-67°F To 221°F] |
EMI Shielding: |
Integrated Internal And External EMI Springs |
Lightpipe Included: |
NO |
Heat Sinks: |
Without |
P/N: |
2274001-1 |
Form Factor: |
ZSFP+ (Single Port / 1x1 Matrix) |
Maximum Data Rate: |
32 Gb/s |
Termination Method: |
Through Hole - Press-Fit |
Operating Temperature: |
-55°C To 105°C [-67°F To 221°F] |
EMI Shielding: |
Integrated Internal And External EMI Springs |
Lightpipe Included: |
NO |
Heat Sinks: |
Without |

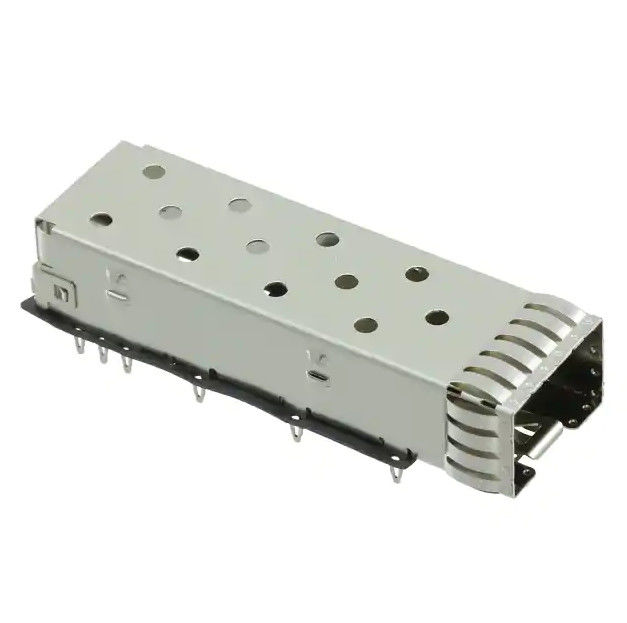

Upgrade your high-speed networking and telecommunications infrastructure with the 2274001-1 zSFP+ Cage Assembly. Engineered for next-generation signal integrity, this single-port (1x1) cage supports ultra-fast data rates up to 32 Gb/s, making it an ideal component for 25G/28G Ethernet and 32G Fibre Channel applications.
Built for thermally enhanced zSFP+ pluggable I/O applications, the 2274001-1 is manufactured from durable Nickel Silver Alloy and operates flawlessly in extreme environments ranging from -55°C to 105°C. It features a reliable Through-Hole Press-Fit termination design optimized for 1.5mm PCBs, alongside advanced internal and external EMI springs to guarantee clean signal transmission and superior electromagnetic shielding.
| Category | Specification | Detail |
|---|---|---|
| General & Configuration | Part Number | 2274001-1 |
| Pluggable Form Factor | zSFP+ | |
| Product Type | Pluggable I/O Cage Assembly | |
| Port Matrix Configuration | 1 × 1 (Single Port) | |
| Circuit Application | Signal | |
| Sealable | No | |
| Included Lightpipe | No | |
| Electrical Performance | Data Rate (Max) | 32 Gb/s |
| EMI Containment Feature | Internal / External EMI Springs | |
| Mechanical & Material Features | Cage Material | Nickel Silver Alloy |
| Heat Sink Compatible | No | |
| Pluggable I/O Application | zSFP+ Thermally Enhanced | |
| Termination & Dimensions | Termination Method to PCB | Through Hole – Press-Fit |
| Termination Post & Tail Length | 3.0 mm (0.118 in) | |
| Recommended PCB Thickness | 1.5 mm (0.059 in) | |
| Environmental & Packaging | Operating Temperature Range | -55°C to 105°C (-67°F to 221°F) |
| Packaging Method | Tray |
The 32 Gb/s capability of the 2274001-1 zSFP+ cage makes it the perfect foundational component for high-bandwidth systems, including:
