Home > products > POE LAN Transformer > POE36PR-12ED POE++ Flyback And Forward Transformers

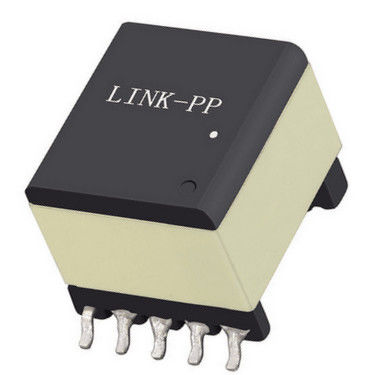

POE36PR-12ED POE++ Flyback And Forward Transformers

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: POE36PR-12ED

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price
Highlight:

POE36PR-12ED High Voltage Flyback Transformer

,

POE36PR-12ED Flyback Converter Transformer

,

POE++ Flyback Converter Transformer

Specifications:
POE36PR-12ED
Power:
36W
Inductance At 0A:
41
Tolerance:
10%
Isat:
4.2A
Leakage Inductance Max:
0.28µH
Isolation Voltage:
12 V, 1.5 A
Secondary Output:
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters
Lifecycle:
More Than 20Years
Specifications:
POE36PR-12ED
Power:
36W
Inductance At 0A:
41
Tolerance:
10%
Isat:
4.2A
Leakage Inductance Max:
0.28µH
Isolation Voltage:
12 V, 1.5 A
Secondary Output:
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters
Lifecycle:
More Than 20Years
POE36PR-12ED POE++ Flyback And Forward Transformers
POE36PR-12ED POE++ Flyback and Forward transformers

Specifications Power (W) Inductance at 0A(µH) Tolerance(%) Isat(A) DCR max (mΩ)
Pri Sec1 Sec2 Aux
POE36PR-12ED 36 41 10 4.2 62 23 23 85



Leakage
Inductance
max
(µH)
Turns Ratio Isolation
Voltage
(Vrms)
Secondary
Output
(V, A)
Pri : Sec1 : Sec2: Aux
0.28 1 : 0.375 : 0.375 : 0.375 1500 12 V, 1.5 A



• Flyback and Forward transformers for PoE up to 72 Watts
• Operates with 9 – 57 V input (POE21, 22, 24, 33, 35 and 38)
• Operates with 33 – 57 V input (POE23, 30, 36, 53, 70, and 72)
• One minute isolation (hipot): 1500Vrms, from pri and aux to each
sec; 500Vrms from pri to aux; 500Vrms between two secondary
• Dual outputs can be configured as one single higher power output
• AEC-Q200 Grade 1 (–40°C to +125°C)



Core material  Ferrite

Environment   RoHS compliant, halogen free

Terminations   Tin-silver-copper over tin over nickel over phos bronze

Weight   7.1 – 7.9 g

Ambient temperature  –40°C to +125°C

Maximum part temperature  +165°C (Ambient + temp rise)

Storage temperature Component: –40°C to +165°C

Tape and reel packaging: –40°C to +80°C

Resistance to soldering heat Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C / 85% relative humidity)

Failures in Time (FIT) / Mean Time Between Failures (MTBF)

38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332



1. Packaging: D = 13″ machine-ready reel. EIA-481 embossed plastic
tape (150 parts per full reel). Quantities less than
full reel available: in tape (not machine ready) or
with leader and trailer ($25 charge).
2. Inductance is for the primary, measured at 200 kHz, 0.1 Vrms, 0 Adc.
3. Leakage inductance measured between pins 1 and 3 with all other
pins shorted.
4. Output is for each secondary. Output of the aux winding is 10 V, 50 mA.
5. Based on 280 mT at 25°C and number of turns on pins 1-3.
6. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.

POE36PR-12ED POE++ Flyback And Forward Transformers 0

POE36PR-12ED POE++ Flyback And Forward Transformers 1
Why is it called a flyback transformer?

The reason it is called a flyback transformer is because the primary winding uses a relatively low-voltage saw-tooth wave. The wave gets strengthened first and then gets switched off abruptly; this causes the beam to fly back from right to left on the display.

POE36PR-12ED POE++ Flyback And Forward Transformers 2POE36PR-12ED POE++ Flyback And Forward Transformers 3POE36PR-12ED POE++ Flyback And Forward Transformers 4
