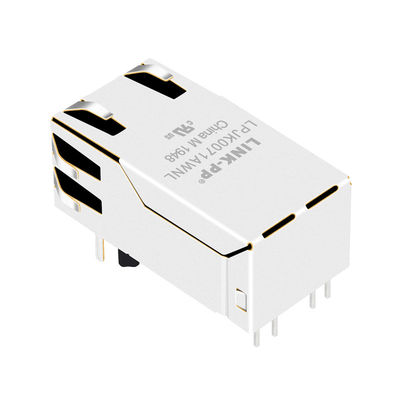

0826-1G1T-23-F Rj45 Modular Jack Female Rj45 Tab-up 12 Cores 10/100/1000 Base-T
0826-1G1T-23-F Rj45 Modular Jack Female Rj45 Tab-up 12 Cores 10/100/1000 Base-T
0826-1G1T-23-F Rj45 Modular Jack Female Rj45 Tab-up 12 Cores 10/100/1000 Base-T
0826-1G1T-23-F Rj45 Modular Jack Female Rj45 Tab-up 12 Cores 10/100/1000 Base-T
0826-1G1T-23-F Rj45 Modular Jack Female Rj45 Tab-up 12 Cores 10/100/1000 Base-T
0826-1G1T-23-F Rj45 Modular Jack Female Rj45 Tab-up 12 Cores 10/100/1000 Base-T
0826-1G1T-23-F Rj45 Modular Jack Female Rj45 Tab-up 12 Cores 10/100/1000 Base-T
0826-1G1T-23-F Rj45 Modular Jack Female Rj45 Tab-up 12 Cores 10/100/1000 Base-T

0826-1G1T-23-F Rj45 Modular Jack Female Rj45 Tab-up 12 Cores 10/100/1000 Base-T

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: 0826-1G1T-23-F

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.05-$1.28

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4200K-PCS/Month

Get Best Price

Product Details

Product Description
Highlight:

rj-45 ethernet jack

,

industrial rj45 connector

Spec:
0826-1G1T-23-F
Spec.2:
RT5-ZZ-0013
Interface:
Gigabyte
Samples:
Free Available
Equivalent:
LPJK4071AWNL
Dimension:
13.5x32.5x16.6mm
Spec:
0826-1G1T-23-F
Spec.2:
RT5-ZZ-0013
Interface:
Gigabyte
Samples:
Free Available
Equivalent:
LPJK4071AWNL
Dimension:
13.5x32.5x16.6mm
0826-1G1T-23-F Rj45 Modular Jack Female Rj45 Tab-up 12 Cores 10/100/1000 Base-T
0826-1G1T-23-F Rj45 Modular Jack Female Rj45 Tab-up 12 Cores 10/100/1000 Base-T

  • 0826-1G1T-23-F Pin To Pin Compatible
  • LPJK4071AWNL Equivalent to 0826-1G1T-23-F
  • Gigabit Ethernet Port Female
0826-1G1T-23-F Rj45 Modular Jack Female Rj45 Tab-up 12 Cores 10/100/1000 Base-T 0
Transmitter filter & Receiver filter
Type : Balance low pass 100Ω imped
Insertion loss : 1~100 MHz -1.0dB max.
Return loss : 1~30 MHz -18dB min. load
30~60MHz -16dB min. load 100Ω
60~80MHz -12dB min. load 100Ω
80~100MHz -10dB min. load 100Ω
Common Mode Rejection
@ 1~100 MHz -30dB min.
Cross Talk
@ 1~100 MHz -30dB min.
Inductance @ 100KHz, 0.1V, 8mA DC BIAS
Input (R11-R10), Input(R4-R5), Inp
Hi-Pot Test
Input(R11-R10) To Output(C1-C2) : 1500Vac 60s or 2250Vdc 60s
Input(R4-R5) To Output(C3-C6) : 1500Vac 60s or 2250Vdc 60s
Input(R3-R2) To Output(C4-C5) : 1500Vac 60s or 2250Vdc 60s
Input(R8-R9) To Output(C7-C8) : 1500Vac 60s or 2250Vdc 60s
0826-1G1T-23-F Rj45 Modular Jack Female Rj45 Tab-up 12 Cores 10/100/1000 Base-T 1
