Product Details
Place of Origin: HuiZhou of China
Brand Name: LINK-PP
Certification: SGS, UL, CE, ISO9001:2008
Model Number: A70-112-331N126
Document: LPJG0926HENL.pdf
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.46-$1.92
Packaging Details: 50PCS/Tray,24Trays/CTN=1200pcs = 32*30*31CM =9KG
Delivery Time: in Stock Ship Today
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 6000K/month
Compatible Model: |
Magjack A70 112 331N126 |
Speed: |
1000Base-T |
Gender: |
Female |
Plating: |
Gold 6 In Contact Area |
Port Quantity: |
1 X 1 Port |
Shied EMI Tabs: |
Without |
Application-Lan: |
PoE+ |
LED Options: |
Green&Yellow Color |
Compatible Model: |
Magjack A70 112 331N126 |
Speed: |
1000Base-T |
Gender: |
Female |
Plating: |
Gold 6 In Contact Area |
Port Quantity: |
1 X 1 Port |
Shied EMI Tabs: |
Without |
Application-Lan: |
PoE+ |
LED Options: |
Green&Yellow Color |

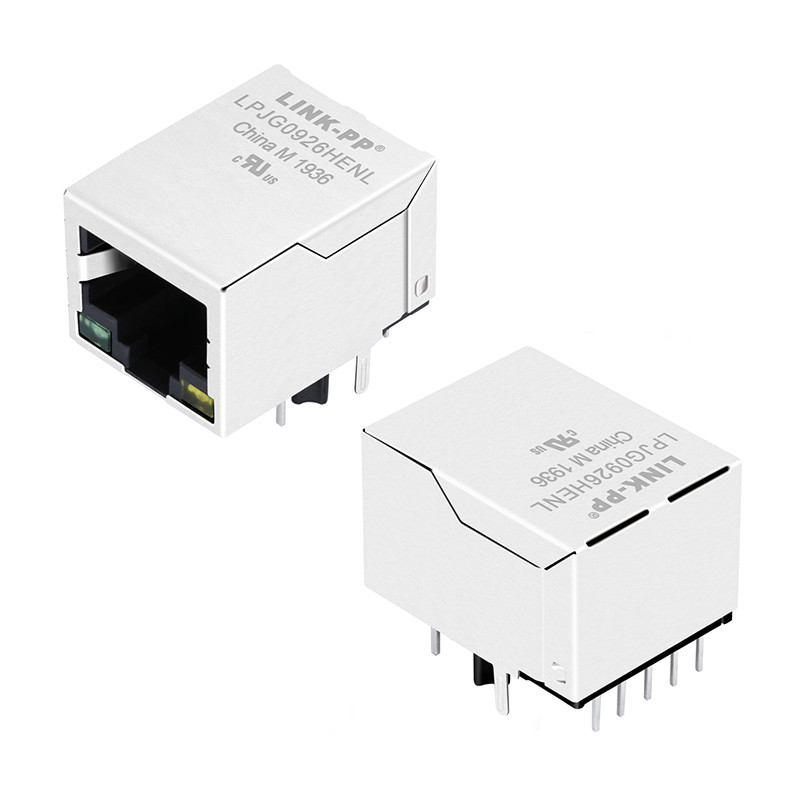

1. RJ45 connector with 1000 Base-T integrated magnetics for POE+ Application.
2. LPJG0926HENL is an alternative to A70-112-331N126, offering identical performance specifications and customizable options.
3. Space Saving Design: Compact form factor for efficient use in high-density networking equipment.
4. EMI Radiation Reduction: LPJG0926HENL has shielding mechanisms to minimize electromagnetic interference (EMI).
5. DIP Type Mounting: Ensures a secure connection on PCBs, improving stability and assembly convenience.
6. Shielded Housing: Offers extra protection against external interference and EMI.
7. LED Options: Provide visual feedback on the connection's status.
|
AutoMDIX |
Support |
|
Connector series |
Magnetic RJ45 Connector |
|
Speed |
10/100/1000 Base-T |
|
Mounting Type |
Through Hole(TH) |
|
Orientation |
90° Angle (Right) |
|
Application-Lan |
Ethernet POE/ PoE+,18W-30W |
|
Height Above Board |
0.526" (13.36mm) |
|
LED Color |
Green - Yellow |
|
Number of Cores per Jack |
8 |
|
Shielding |
Shielded, Without EMI Finger |
|
Features |
Board Guide |
|
Tab Direction |
Down |
|
Contact Material |
Phosphor Bronze C5210R-EH |
|
Contact Plating |
Gold 6 |
|
Operating Temperature |
0°C ~ 70°C |
|
Contact Finish Thickness |
6.00µin (0.152µm) |
|
Shield Material |
SUS201 |
|
Housing Material |
UL90V-0 Thermoplastic |
|
Number of Ports |
1 |
|
Number of Rows |
1 |
● Networking: routers, servers, switches, network firewalls, and SMPS (Switched-Mode Power Supplies).
● Consumer Electronics: digital cameras, video recorders, media players, game controllers, and televisions.
● Security Systems: alarms, intelligent cameras, monitoring systems, intercoms, and entrance guard systems.
● Telecommunications: smart home devices, smart meters, satellite equipment, new energy systems, and solar inverters.
● Medical Devices: surgical equipment, patient care devices, handheld medical tools, operation generators, home dialysis machines, and more.
● Industrial I/O (Input/Output): industrial PCs, embedded main boards, Ethernet control systems, automation equipment, fieldbus systems, and I/O controllers.
1. LINK-PP offers OEM and ODM services
2. Various Mounting Type Options: including DIP, Through Hole(TH), and Surface Mount Device (SMD).
3. Gold Plating Option for Contact Area
4. Diverse Layouts and Speeds: including 10/100/1G/2.5G/5G/10G Base-T.
5. Standard and Extended Operating Temperature Range
