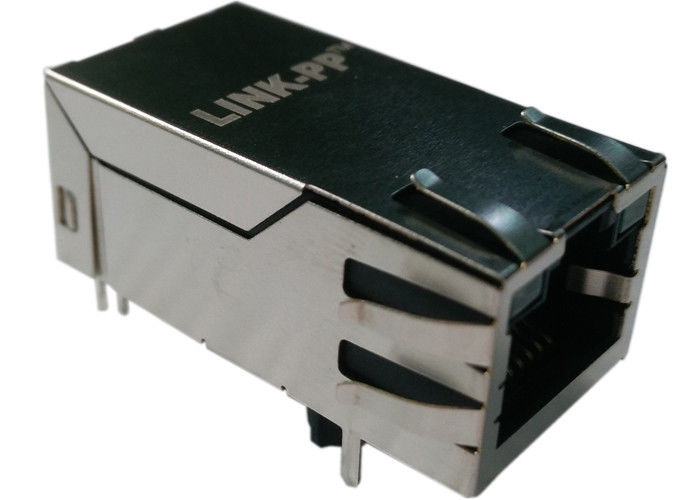

Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: 0826-1D1T-23-F
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Negotiable & Discount
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: In Stock Ship Within 3 Days
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4600K.PCS/Month
Part No: |
0826-1D1T-23-F |
LINK-PP Part No: |
LPJK0071AGNL |
PCB Mounting Orientation: |
Side Entry (Right Angle) |
Jack Type: |
RJ45 With Magnetics |
Tab Direction: |
Tab UP |
Series: |
Gigabit Magjack |
Number Of Ports: |
1 |
Operating Temperature: |
0°C ~ 70°C |
Shielding: |
Shielded, EMI Finger |
Number Of Cores Per Jack: |
12 |
LED Color: |
Yellow - Green |
Mounting Type: |
Through Hole |
Part No: |
0826-1D1T-23-F |
LINK-PP Part No: |
LPJK0071AGNL |
PCB Mounting Orientation: |
Side Entry (Right Angle) |
Jack Type: |
RJ45 With Magnetics |
Tab Direction: |
Tab UP |
Series: |
Gigabit Magjack |
Number Of Ports: |
1 |
Operating Temperature: |
0°C ~ 70°C |
Shielding: |
Shielded, EMI Finger |
Number Of Cores Per Jack: |
12 |
LED Color: |
Yellow - Green |
Mounting Type: |
Through Hole |
| Parameter | Condition | Specification |
|---|---|---|
| Turns Ratio (±2%) | TP1 | 1CT : 1CT |
| TP2 | 1CT : 1CT | |
| TP3 | 1CT : 1CT | |
| TP4 | 1CT : 1CT | |
| OCL (Open Circuit Inductance) | 100 kHz / 100 mVRMS, 8 mA DC Bias | 350 μH MIN |
| Insertion Loss | 0.1 MHz – 1 MHz | -1.1 dB MAX |
| 1 MHz – 65 MHz | -0.5 dB MAX | |
| 65 MHz – 100 MHz | -0.8 dB MAX | |
| 100 MHz – 125 MHz | -1.2 dB MAX | |
| Return Loss (MIN) | 0.5 MHz – 40 MHz | -18 dB |
| 40 MHz – 100 MHz | -12 + 20LOG(f/80 MHz) dB | |
| Common Mode Rejection (CM to CM) | 100 kHz – 100 MHz | -30 dB MIN |
| CM to DM Rejection | 100 kHz – 100 MHz | -35 dB MIN |
| Isolation Voltage | 100% tested per IEEE 802.3 isolation requirements | 1500 Vrms or 2250 VDC |
| LED No. | Condition | Parameter | Typical Value |
|---|---|---|---|
| LED 1 | IF = 20 mA | Forward Voltage (VF) | 2.2 V (Green) |
| IF = 20 mA | Dominant Wavelength (λd) | 565 nm (Green) | |
| LED 2 | IF = 20 mA | Forward Voltage (VF) | 2.1 V (Yellow) |
| IF = 20 mA | Dominant Wavelength (λd) | 590 nm (Yellow) |
