GST5009C LF , LP82455NL 1000 BASE-T Magnetics Modules Gigabit Transformer

Name: GST5009C LF , LP82455NL 1000 BASE-T Magnetics Modules Gigabit Transformer
Brand: LINK-PP
SKU: GST5009C LF
Price: 0.06 USD
Availability: InStock
Rating: 4.7 (147 reviews)

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: GST5009C LF

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                10/100base-t magnetics, ethernet transformer


Specification:	GST5009C LF	P/N:	LP82455NL
Ethernet:	10/100/1000mbpsx1	Measure:	15.10x10x4.01mm
Mounting:	SMD	Samples:	Available

Specification:	GST5009C LF
P/N:	LP82455NL
Ethernet:	10/100/1000mbpsx1
Measure:	15.10x10x4.01mm
Mounting:	SMD
Samples:	Available

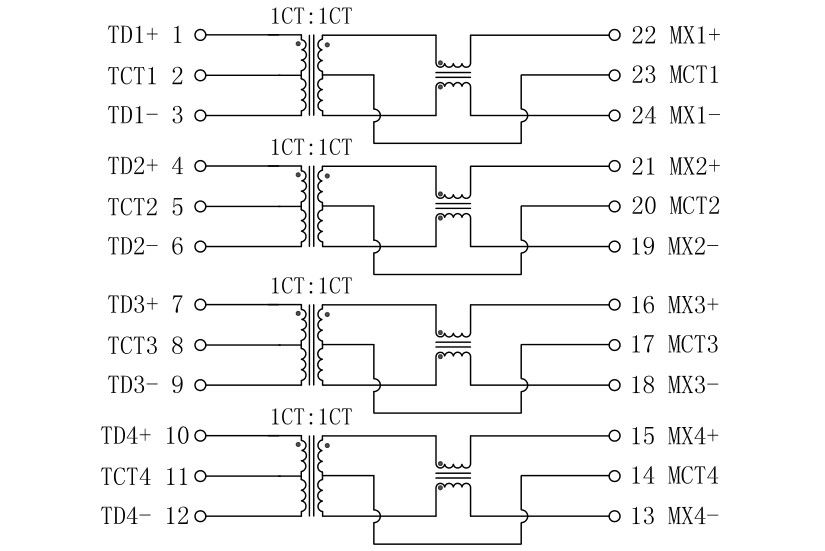

GST5009C LF , LP82455NL 1000 BASE-T Magnetics Modules Gigabit Transformer

GST5009C LF , LP82455NL 1000 BASE-T Magnetics Modules Gigabit Transformer

1.Coil Number: 8

2.Coil Structure:Toroidal

3.SMT,24Pins LINK-PP LP82455NL Compatible Part

4.gigabit ethernet transformer

5.1000 Base-T Single Port Transformer Modules

6.Designed for long haul gigabit Ethernet 1000 BASE-T, full duplex applications.
7.Supports 4 pairs of category 5 UTP cable.
8.Compliant with IEEE 802.3ab standard for 1000 BASE-T.

Electrical Specifications(25):
1. Turns Ratio50KHz, 0.5V
Chip side: Line side=1CT: 1CT+_2%
2. Inductance(Ls)100KHz, 0.1V, 12mA DC Bias:
Chip side: 350uH Min
3. Insertion Loss1-100MHz: -1.4dB Max
4. Return Loss1-30MHz: -16dB Min
40MHz: -14.4dB Min

50MHz: -13.1dB Min
60-80MHz: -12dB Min
100MHz: -10dB Min
5. Differential to Common Mode Rejection:
30MHz: -45dB Min
60MHz: -40dB Min
100MHz: -35dB Min
6. Crosstalk30MHz: -40dB Min
60MHz: -35dB Min
100MHz: -30dB Min
7. Hi-Pot: 1500Vrms Min

Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Competitive Advantage:

2600 staff,

100% test

Flexible delivery time
