Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO

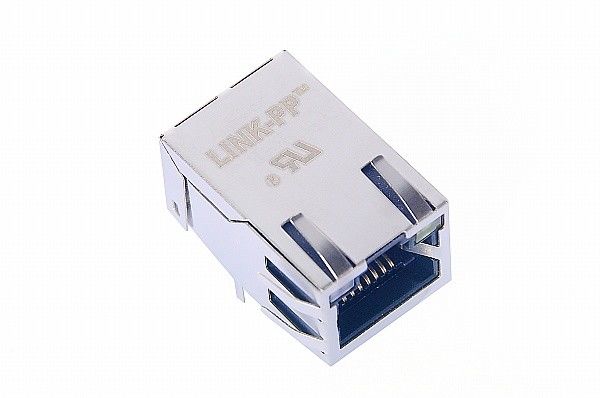

Model Number: 0826-1X1T-57-F
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4600K.PCS/Month
Part Status: |
Active |
Connector Type: |
Integrated Connector Modules (ICM) |
Number Of Ports: |
1 |
Number Of Rows: |
1 |
Applications: |
10/100 Base-T, AutoMDIX |
Mounting Type: |
Through Hole |
Orientation: |
90° Angle (Right) |
Termination: |
Solder |
LED Color: |
Green, Orange - Yellow |
Shielding: |
Shielded, EMI Finger |
Tab Direction: |
Up |
Operating Temperature: |
0°C ~ 70°C |
Contact Material: |
Copper Alloy |
Contact Finish: |
Gold |
Shield Material: |
Copper Alloy |
Housing Material: |
Polyamide (PA), Nylon |
Part Status: |
Active |
Connector Type: |
Integrated Connector Modules (ICM) |
Number Of Ports: |
1 |
Number Of Rows: |
1 |
Applications: |
10/100 Base-T, AutoMDIX |
Mounting Type: |
Through Hole |
Orientation: |
90° Angle (Right) |
Termination: |
Solder |
LED Color: |
Green, Orange - Yellow |
Shielding: |
Shielded, EMI Finger |
Tab Direction: |
Up |
Operating Temperature: |
0°C ~ 70°C |
Contact Material: |
Copper Alloy |
Contact Finish: |
Gold |
Shield Material: |
Copper Alloy |
Housing Material: |
Polyamide (PA), Nylon |
| 1. Key Features: | 1) RJ45 Connector with integrated transformer |
| 2) Power over Ethernet 15W | |
| 3) 350μH MIN. OCL @ 100KHz/100mVRMS 8MA DC BIAS | |
| 4) Complies with IEEE 802.3 | |
| 5) Operating Temperature Range of 0° to +70° C | |
| 6) RoHS Compliant, Soldering = 260° C for 10 Seconds | |
| 2. Networking Equipment Applications: | 1) Storage |
| 2) Switches | |
| 3) Routers | |
| 4) Servers | |
| 5) Workstations | |
| 6) Motherboards | |
| 3. Mechanical Specifications: | |
| 1) Port Configuration | 1x1 |
| 2) Shielded | Yes |
| 3) EMI Finger | Yes |
| 4) Termination Method | Solder |
| 5) Latch Orientation | Standard - Latch UP |
| 6) PCB Tail Length | 3.50±0.50mm |
| 7) Preloaded | Yes |
| 8) Contact Termination Type | Through Hole |
| 9) Connector Style | Integrated Connector Modules |
| 10) Left LED Color | Orange Green |
| 11) Right LED Color | Yellow |
| 12) Operating Temperature ( ) | 0 - 70°C |
| 4. Industry Standards: | |
| 1) RoHS/ELV Compliance | RoHS-compliant, ELV-compliant |
| 2) Lead-Free Solder Processes | Wave solder capable of 260°C |
| 3) RoHS/ELV Compliance History | Always was RoHS compliant |
LINK-PP supplies integrated connector modules (ICMs) that incorporate Ethernet filtering solutions into RJ45 connectors. Its product line features various RJ45 MagJack options and mechanical Options including plug tab up/down, with or without LEDs, and bi-color configurations. The 2x1/ 2x4/2x6 /2x8 multi-port configurations with RJ45 and USB port combinations. These connectors are flexible to meet various design and performance requirements. With decades of expertise, LINK-PP provides reliable, high-quality solutions for modern communication and network infrastructure applications.
