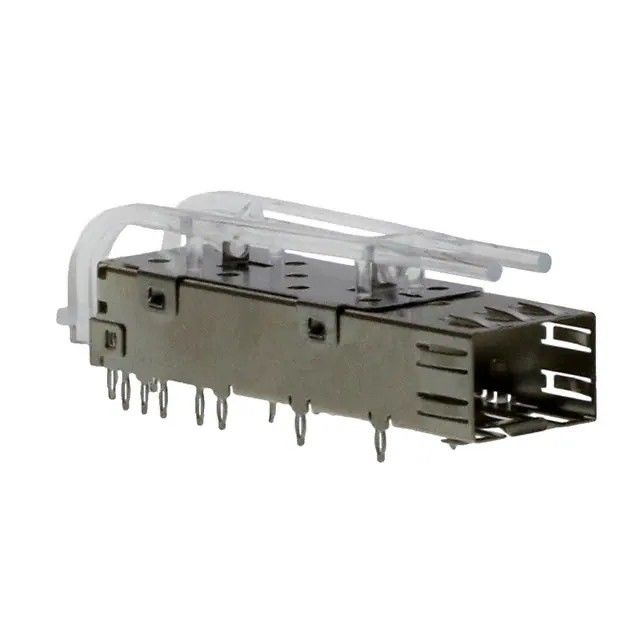

1367629-2 SFP Cage Assembly Press Fit 4 Gb/S With Light Pipe

Explore the 1367629-2 SFP cage assembly press fit, a 20-position single-port SFP cage with internal/external EMI springs, press-fit termination, and operating range from -55°C to 85°C.

1367629-2 SFP Cage Overiew

The 1367629-2 SFP Cage Assembly Press Fit is a single-port SFP cage designed for signal applications that require a compact, reliable, and EMI-conscious pluggable I/O solution. With a 20-position configuration, standard lightpipe style, and through-hole press-fit termination, this cage assembly is built for stable PCB integration in networking and communication equipment.


Supporting a maximum data rate of 4 Gb/s and an operating temperature range of -55°C to 85°C, the 1367629-2 is well suited for industrial and performance-driven systems where durability and electrical consistency matter. Its copper alloy cage material and internal/external EMI springs further enhance mechanical robustness and electromagnetic containment.

Press Fit SFP Cage Assembly Highlights

• SFP cage assembly with press-fit termination
• 20-position, single-port, 1 x 1 configuration
• Supports data rates up to 4 Gb/s
• Through-hole press-fit PCB mounting
• Operating temperature range: -55°C to 85°C
• Included lightpipe for optical interface support
• Internal/external EMI springs for improved shielding
• Copper alloy cage construction
• Recommended PCB thickness: 1.5 mm
• Standard SFP form factor

Specifications of 1367629-2 SFP Cage Assembly

1367629-2 SFP Cage Drawing

RECOMMENDED PC BOARD LAYOUT

Applications of SFP Cage Assembly

The 1367629-2 SFP cage is a versatile solution for high-speed I/O requirements in:

• Networking Infrastructure: Switches, routers, and hubs.
• Telecommunications: Base stations and optical transport equipment.
• Storage Systems: SAN and NAS hardware interfaces.
• Industrial Computing: High-speed data acquisition and automation controllers.

FAQs about 1367629-2 4Gb/s SFP Cage

The 1367629-2 SFP Cage Assembly Press Fit is a well-balanced solution for designers who need a reliable SFP cage, secure press-fit mounting, and effective EMI containment. With its 20-position, single-port configuration, included lightpipe, and wide operating temperature range, it is a strong option for signal-focused hardware platforms.

1. What Is The 1367629-2 Used For?

The 1367629-2 is used as an SFP cage assembly for signal-based pluggable I/O applications in networking and electronic systems.

2. Does The 1367629-2 Use Press-Fit Termination?

Yes. It uses through-hole press-fit termination for PCB mounting.

3. Is The 1367629-2 Sealed?

No. This part is not sealable.

4. What Is The Maximum Data Rate?

The maximum data rate is 4 Gb/s.

5. Does The 1367629-2 Include A Lightpipe?

Yes. The part includes a lightpipe with standard lightpipe style.
