Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: 2007198-1
Payment & Shipping Terms
Minimum Order Quantity: 10/100/25K
Price: $2.45
Packaging Details: 20/Tray
Delivery Time: 3-5 days
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 350K/Month
Part Number: |
2007198-1 |
Connector Type: |
SFP+ Cage Assembly |
Part Status: |
Active |
Data Rate (Max) (Gb/s): |
16 Gb/s |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Lifecycle: |
More Than 20Years |
Part Number: |
2007198-1 |
Connector Type: |
SFP+ Cage Assembly |
Part Status: |
Active |
Data Rate (Max) (Gb/s): |
16 Gb/s |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Lifecycle: |
More Than 20Years |

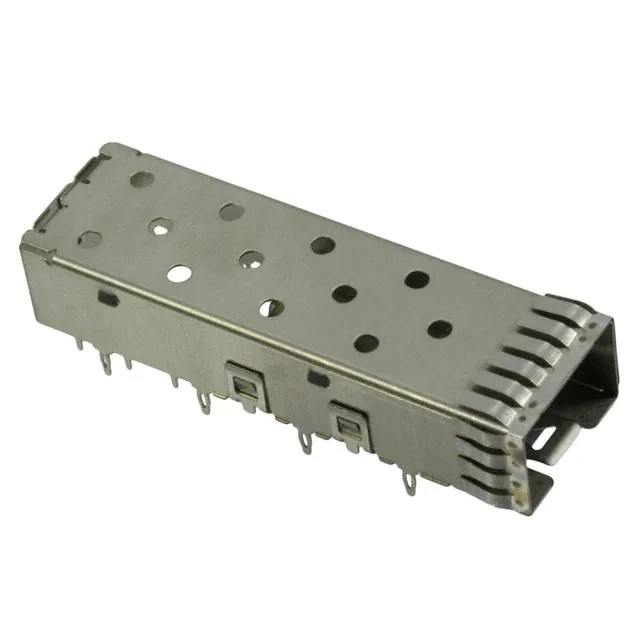

2007198-1 SFP+ cage assembly with 1x1 port configuration, press-fit termination, EMI springs, and a wide -55°C to 105°C operating range for high-speed optical module designs.
| Parameter | Value |
|---|---|
| Product Name | 2007198-1 SFP+ Cage |
| Product Type | Cage |
| Interface Type | SFP+ |
| Port Matrix Configuration | 1 x 1 |
| Number of Ports | 1 |
| Termination Type | Press-Fit / Press-Fit |
| EMI Feature | EMI Springs |
| Data Rate (Max) | 16 Gb/s |
| Operating Temperature Range | -55°C to 105°C [-67°F to 221°F] |
| Sealable | No |
| Pluggable I/O Product Type | Cage |
The 2007198-1 SFP+ Cage is a 1 x 1 cage assembly designed for high-speed pluggable I/O applications. Built with press-fit termination and integrated EMI springs, it supports stable mechanical retention and improved shielding performance in demanding networking environments.
With a maximum data rate of 16 Gb/s and an operating temperature range of -55°C to 105°C, the 2007198-1 SFP+ cage is a dependable choice for equipment that requires reliable signal integrity, strong EMI control, and long-term durability. Its compact single-port 1 x 1 configuration makes it suitable for dense system layouts where space efficiency is critical.
| 2007215-1 | 2057021-1 | 2170703-5 |
| 2170703-4 | 1888674-1 | 2170193-1 |
| 2007198-1 | 2110304-1 | 2317434-1 |
| 2007254-1 | 2170773-6 | 2143432-1 |
| 2291579-1 | 2007193-1 | 2274001-1 |
LINK-PP provides high-quality SFP cage solutions engineered for modern networking, telecommunications, data center, and industrial communication equipment. Designed to meet industry standards and support high-speed pluggable optical transceivers, LINK-PP cages offer excellent mechanical reliability, EMI performance, and manufacturing flexibility.
Available in a wide range of configurations to meet diverse design requirements:
This flexibility enables designers to optimize PCB space and port density for various networking applications.
LINK-PP SFP cages are available with customizable features, including:
Designed to support current and next-generation networking technologies:
| Speed | Application Examples |
|---|---|
| 1G | Gigabit Ethernet |
| 5G | Multi-Gig Ethernet |
| 10G | SFP+ Networks |
| 40G | QSFP+ Systems |
| 100G | QSFP28 Platforms |
| 400G | QSFP-DD and OSFP Solutions |
This broad compatibility helps future-proof network equipment and infrastructure investments.
To accommodate different manufacturing processes, LINK-PP cages are offered with:
These options provide greater flexibility for automated assembly and production requirements.
All LINK-PP SFP cage products are designed to comply with recognized Small Form Factor (SFF) industry standards, ensuring:
Whether you are developing Ethernet switches, routers, servers, storage systems, or optical communication equipment, LINK-PP cage solutions deliver the performance, flexibility, and reliability required for today's high-speed connectivity demands.
