Part Number: |
LPJD5011BENL |
Type: |
Vertical RJ45 Jack |
Munafactuer: |
LINK-PP |
Free Samples: |
Available |
Data Rate: |
10/100Base-TX |
Number Of Channels/Ports: |
Single |
PoE: |
Non |
Mounting Type: |
THT |
Turns Ratio: |
1:1 |
Operating Temperature Range: |
-40°C To +85°C |
Part Number: |
LPJD5011BENL |
Type: |
Vertical RJ45 Jack |
Munafactuer: |
LINK-PP |
Free Samples: |
Available |
Data Rate: |
10/100Base-TX |
Number Of Channels/Ports: |
Single |
PoE: |
Non |
Mounting Type: |
THT |
Turns Ratio: |
1:1 |
Operating Temperature Range: |
-40°C To +85°C |

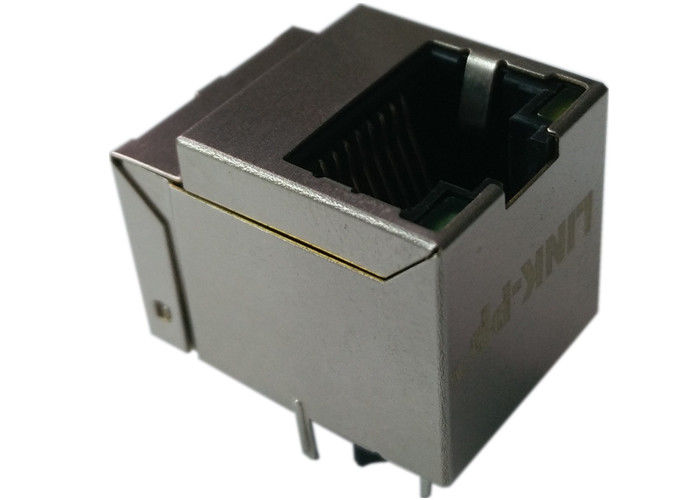

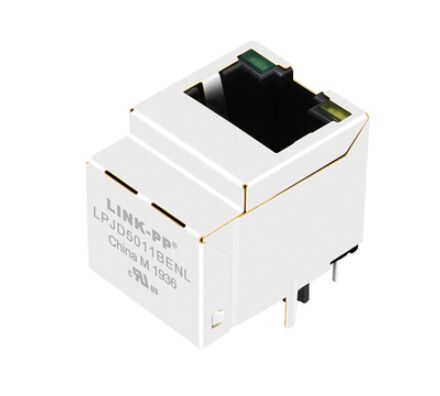

LPJD5011BENL vertical RJ45 connector with integrated magnetics supports 10/100 Base-T Ethernet. 1x1 port, 1500Vrms isolation, LEDs, ideal for routers, switches, and LAN-on-motherboard applications.
The LPJD5011BENL is a high-performance vertical RJ45 connector with integrated magnetics, specifically engineered for 10/100 Base-T Ethernet applications. Designed to meet IEEE 802.3 standards, this compact 1x1 LAN jack simplifies PCB layout, reduces EMI, and enhances signal integrity.
It is widely used in SOHO devices, LAN-on-Motherboard (LOM), switches, and routers, making it a reliable choice for network equipment manufacturers seeking stable performance and cost efficiency.
| Vertical Rj45 With Integrated Magnetics - Top Entry 180 Degree | |||||
|
Type |
P/N |
Manufacturer |
Description |
||
|
Vertical RJ45 |
LPJD5011BENL |
LINK-PP |
Vertical RJ45 Connector with Integrated Magnetics |
||
|
Orientation |
Termination |
LED Color |
Shielding |
||
|
180° Angle (Vertical) |
Solder |
Yellow/Green |
Shielded |
||
| Port Configuration | Connector Type | Package Size | Mounting Type | ||
| 1x1 | RJ45 (8P8C) | 21.70x16.00x16.59 mm | Through-Hole (THT) | ||
|
Key Highlights
|
|||||
1. Turns Ratio (RX/TX): 1CT:1CT ±5%
2. Open Circuit Inductance (OCL): ≥350µH @100kHz
3. Insertion Loss: ≤ -1.2 dB (1–100 MHz)
4. Return Loss:
5. Crosstalk: ≤ -30 dB
6. Common Mode Rejection: ≤ -30 dB
7. Isolation Voltage: 1500Vrms (PHY to Line)
These specifications ensure stable data transmission, reduced noise, and high EMI suppression, which are critical for Ethernet reliability.
Ensures excellent durability, corrosion resistance, and long mating cycles
|
