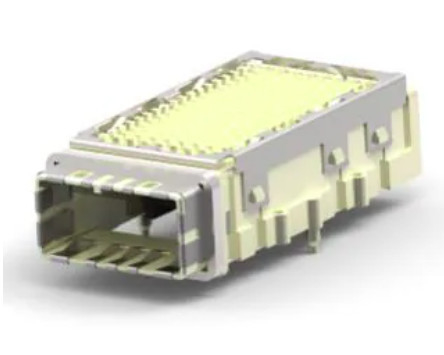

CXP Receptacle Assembly 2149157-1 125Gb/s Max With Heat Sink

Key Features of 2149157-1 125Gb/s Cage Assembly

• Standard CXP interface complies with InfiniBand CXP 12x QDR and IEEE 100 Gbps Ethernet

• Provides 12 channels of 12.5 Gbps data rates for 150Gbps of total bandwidth in a one-piece press-fit assembly

• Enhanced Footprint (EF), dualsourced footprint offers reduced cross-talk

• Pre-assembled (one-piece) connector and cage assembly offers one-step placement to the board

• EMI gaskets at the bezel opening and EMI springs for plug-to-receptacle containment

• CXP cages accommodate belly-to-belly mounting (can be applied to both sides of the board)

• Offering includes multiple heat-sink, light pipe, and EMI/dust plug options to fit customer applications

Technical Specifications:

2149157-1 CXP Cage Applications:

• Controller Cards and Servers
• Network Switches
• Routers
• Direct Attached Storage (DAS)
• Storage Attached Networks(SAN)
• Network Attached Storage(NAS)
• Storage Devices

Notes:

1. The connectors are designed to operate in a temperature range of -40° to 85°C [-40° to 185°F].
2. The CXP Receptacle Assembly is specifically configured for products used in the communications industry. NOT be used for peripheral component interconnect (PCI) applications.
3. The connector housing and chicklets (parts holding the compliant pin contacts) are molded thermoplastic, UL 94-V-0. All compliant pin contacts in the connector are made of copper alloy underplated with nickel; plated with tin at the leads and plated with gold or gold equivalent at the interface area. The housing assembly is made of die-cast zinc. The dust plug is made of die-cast zinc.
4. Prolonged exposure to ultraviolet light may deteriorate the chemical composition used in the connector material.
5. The connector assembly should remain in the shipping container until ready for use to prevent deformation to the compliant pin contacts and mounting posts. The connector assemblies should be used first in, first out to avoid storage contamination that could adversely affect performance.
