LINK-PP LS-SM3110-10C-MY 10GBase LR SFP Module Single Mode Transceiver

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,RoHS,REACH,ISO

Model Number: LS-SM3110-10C-MY

Payment & Shipping Terms

Minimum Order Quantity: 1pc,10pcs

Price: $8.3-$12

Packaging Details: Reel

Delivery Time: 2-3 Weeks

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 5KK/Month

Get Best Price
Highlight:

SFP+ 10G Ethernet

,

10G SFP Plus Module

,

10 Gigabit Ethernet SFP+

Max Data Rate:
10.7Gbps
Max Cable Distance:
10km
Media:
SMF
Transmitter Type:
DFB
Receiver Type:
PIN
Power Consumption:
≤1W
Compatible Brands:
Cisco
Distance:
≤10km
Form Factor:
SFP+
Type:
Single Mode
Data Rate:
10G
Connector:
Duplex LC
Wavelength:
1310nm
Max Data Rate:
10.7Gbps
Max Cable Distance:
10km
Media:
SMF
Transmitter Type:
DFB
Receiver Type:
PIN
Power Consumption:
≤1W
Compatible Brands:
Cisco
Distance:
≤10km
Form Factor:
SFP+
Type:
Single Mode
Data Rate:
10G
Connector:
Duplex LC
Wavelength:
1310nm
LINK-PP LS-SM3110-10C-MY 10GBase LR SFP Module Single Mode Transceiver

Overview of 10G SFP+ Module:



The LINK-PP LS-SM3110-10C-MY SFP+ 10GBASE-LR Optical Transceiver Module is a high-performance, cost-effective solution for long-distance data transmission. Supporting data rates of up to 10Gbps and transmission distances of up to 10km over Single-Mode Fiber (SMF), this transceiver is ideal for various applications such as data centers, enterprise networks, service provider networks, and telecommunications. It features a 1310nm Distributed Feedback (DFB) laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA), and an MCU control unit.



Key Features:

  • Equivalent to H3C SFP-XG-LR-SM1310 and D-Link DEM-432XT-DD in function
  • Hot-pluggable SFP+ fiber optic transceiver module
  • Supports data rates up to 10.7Gbps
  • 1310nm DFB transmitter
  • Duplex LC optical connector
  • Link distance up to 10km over single-mode fiber (SMF)
  • Low power consumption (<1W)
  • Compliant with SFP+ Multi-Source Agreement (MSA), IEEE 802.3ae 10GBASE-LR, SFF-8431, and SFF-8432 standards
  • Commercial temperature ranges from 0 to 70°C
  • Digital Diagnostic Monitoring (DDM) for real-time parameter monitoring
  • RoHS compliant

LS-SM3110-10C-MY Specifications:

SMF Optical Transceiver Module

Part Status Active

Compatible Brands

Cisco, Dell, FS

Distance

≤10km

Form Factor

SFP+

Type Single Mode

Data Rate

10G

Connector

Duplex LC

Wavelength

1310nm

Receiver Sensitivity <-14.4dBm

TX Power

-6.5 to -0.5dBm

RX Power -20 to -1dBm

Commercial Temperature Range

0 to 70°C

Protocols

IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI

LS-SM3110-10C-MY Data Sheet:



LS-SM3110-10C-MY.pdf



Details of SFP+ Transceiver Module:

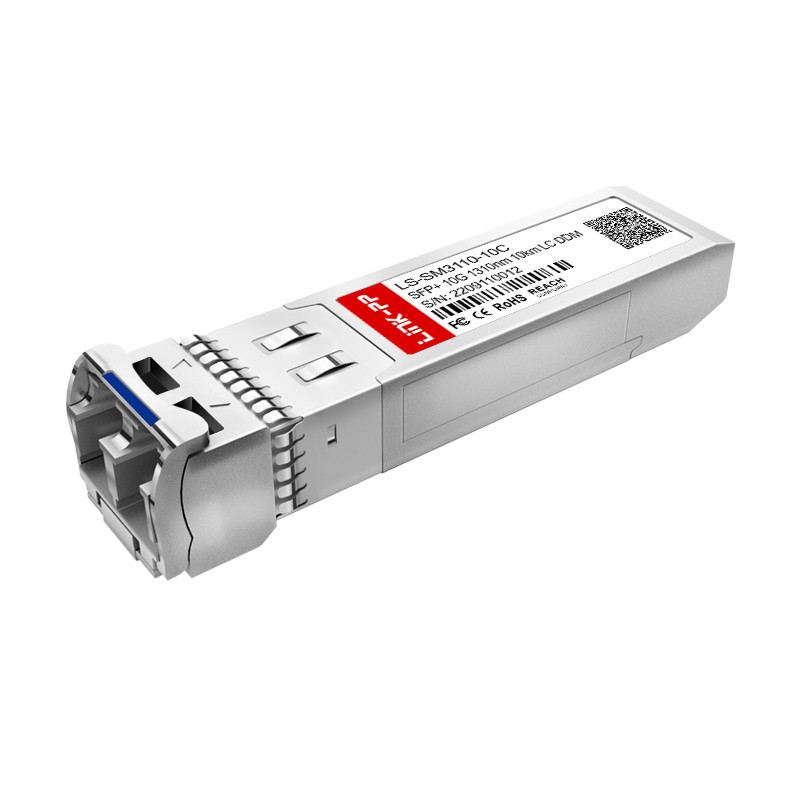

LINK-PP LS-SM3110-10C-MY 10GBase LR SFP Module Single Mode Transceiver 0LINK-PP LS-SM3110-10C-MY 10GBase LR SFP Module Single Mode Transceiver 1
