Product Details
Place of Origin: Guangdong, China
Brand Name: LINK-PP
Certification: RoHS, REACH
Model Number: S32-ZZ-0093
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Price: Negotiable & Discount$0.32 - $1.5
Packaging Details: Tray
Delivery Time: Ships within 5 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 6000K-PCS/Month
Products Type Shape: |
RJ45 Multiport |
Number Of Ports: |
2 |
Shape: |
2 X N |
Speed: |
1G |
Operating Temperature: |
0~70℃ |
LED Color: |
Left Green/ Right Yellow |
Products Type Shape: |
RJ45 Multiport |
Number Of Ports: |
2 |
Shape: |
2 X N |
Speed: |
1G |
Operating Temperature: |
0~70℃ |
LED Color: |
Left Green/ Right Yellow |

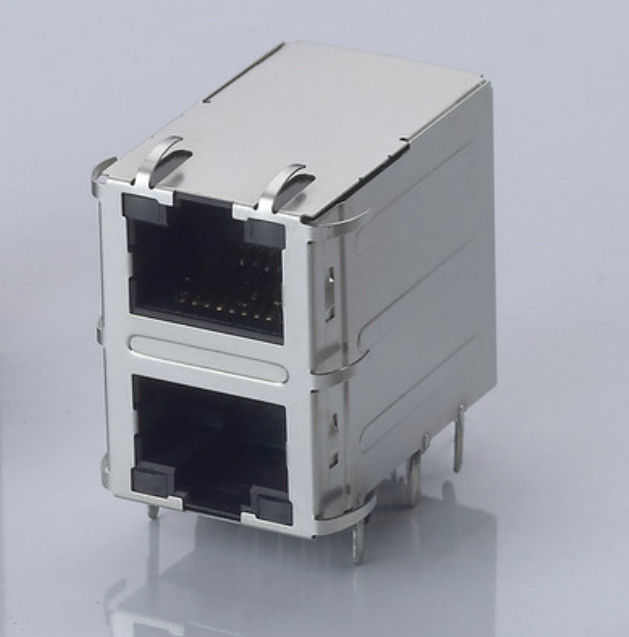

This S32-ZZ-0093 RJ45 Multiport through-hole connector supports 10/100/1000 Base-T Ethernet speeds. It has a 2X1 port configuration and LEDs indicating status—yellow on the left and green on the right. It features a contact area with a minimum of 6u" gold plating. S32-ZZ-0093 has 2500 cycles of reliable use, ensuring long-lasting performance and durability. It operates in environments ranging from 0°C to +70°C and storage temperatures from -40°C to +85°C.
| Product Style | 2X1 RJ45 Multiport Connector |
| Data Rate | 10/100/1000 Base-T |
| Mounting Type | Through Hole |
| PoE | No |
| Gender | Female |
| Left / Right LED Color | Green/Yellow |
| Orientation | Right Angle |
| Termination Method | Solder |
| Gold Plating | 6u" |
| Insulation Resistance | 500MΩ min. |
| Durability | 2500 cycles |
| Operating Temperature | 0°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Turns Ratio | 1CT:1CT |
| Insertion loss | 1 MHz: -1.0dB Max. 100 MHz: -1.4dB Max |
| Return loss (load 100Ω) |
1~30MHz: -16dB Min. 30~60MHz: -14dB Min. 60~80MHz: -10dB Min. 80~100MHz: -8dB Min. |
| Common Mode Rejection | 1~100 MHz: -30dB Min. |
| Cross Talk | 1~100MHz: -30dB Min. |
| Inductance @ 100KHz, 0.1V | 350 μH Typ |
| HiPot Test | PHY Side(input) To Cable Side(output) : 1500Vac 60s or 2250Vdc 60s |
1. Terminal Parts:
Finish: Contact Area: Minimum 6u" Gold.
Material: Brass
Thickness: 0.35mm
Finish: 100μ" minimum matte Tin.
2. Plastic Parts (UL94V-0):
Material: PA6T, Black.
Material: PC, Transparent.
3. Shield Parts:
Material: Stainless Steel
Thickness: 0.20mm
Back Shield Finish: Pre-soldering coating.
