Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: 1-1840053-4
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$7
Packaging Details: Tray
Delivery Time: 3-5 days
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Number Of Ports: |
2x4 Stacked Ports |
Series: |
8P8C (RJ45) |
EMI Panel Finger: |
With |
Mount: |
THT |
Operating Temperature: |
-40°C Up To +85°C |
Free Samples: |
Available |
Number Of Ports: |
2x4 Stacked Ports |
Series: |
8P8C (RJ45) |
EMI Panel Finger: |
With |
Mount: |
THT |
Operating Temperature: |
-40°C Up To +85°C |
Free Samples: |
Available |
| Category | Specification |
|---|---|

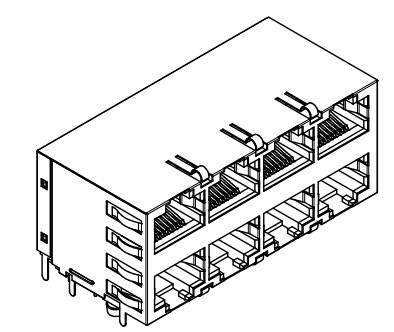

| Product Type | 2X4 Multi Port RJ45 Jack |
| Part Number | 615064243321 |
| Orientation | Horizontal |
| Configuration | 2x4 Stacked Ports |
| Connector Type | 8P8C (RJ45) |
| Tab Position | Up & Down |
| Special Feature | EMI Panel Finger |
| Operating Temperature | -40°C to +85°C |
| Insulator Material | PA9T |
| Insulator Flammability | UL94 V-0 |
| Insulator Color | Black |
| Contact Material | Copper Alloy |
| Contact Plating | Selective Gold |
| Contact Type | Stamped |
| Shielding Material | Bronze |
| Shielding Plating | Nickel (Ni) |
| Working Voltage | 120 V (AC) |
| Withstanding Voltage | 1000 V (AC), 1 min test |
| Shielding to Pin Voltage | 1500 V (AC), 1 min test |
| Contact Resistance | Max. 20 mΩ |
| Insulation Resistance | Min. 500 MΩ |
| Durability | 500 Mating Cycles |
| Width | 59.20 ±0.25 mm |
| Height | 25.30 ±0.20 mm |
| Depth | 28.20 ±0.20 mm |
| RoHS Compliance | Yes |
| REACh Compliance | Yes |
| UL Certification | E324776 |
| Soldering Info | Wave soldering profiles are available in the datasheet |
Designed for general electronic equipment use.
Not authorized for use in high-safety-requirement applications without approval.
Avoid mechanical impact or scratches on the component.
Storage recommended for no longer than 12 months.
Follow the specified soldering profile.
Cleaning agents may affect component characteristics.
Manufacturer Information.
