LPJK0071CNL Magnetic RJ45 Jack Cross 7499111000A IEEE 802.3ab 1000BaseT

Name: LPJK0071CNL Magnetic RJ45 Jack Cross 7499111000A IEEE 802.3ab 1000BaseT
Brand: LINK-PP
SKU: 7499111000A
Rating: 4.7 (199 reviews)

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: 7499111000A

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Supportive

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4600K.PCS/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                rj45 with magnetics, rj45 magnetic jack


Specification:	7499111000A	Cross Part:	LPJK0071CNL
Original Munafactuer:	LINK-PP	Ethernet:	1000Base-T Gigabit
Termination:	Solder	Samples:	Available

Specification:	7499111000A
Cross Part:	LPJK0071CNL
Original Munafactuer:	LINK-PP
Ethernet:	1000Base-T Gigabit
Termination:	Solder
Samples:	Available

LPJK0071CNL Magnetic RJ45 Jack Cross 7499111000A IEEE 802.3ab 1000BaseT

PN# LPJK0071CNL
Cross Specification # 7499111000A
10/100/1000 Mbps Ethernet; RJ-45 connector
Rj45 Right Angle PCB Connector
Operating temperature: 0°C - + 70°C
Hipot test: 1500Vrms 1min.
Compliant with IEEE 802.3ab for 1000BaseT

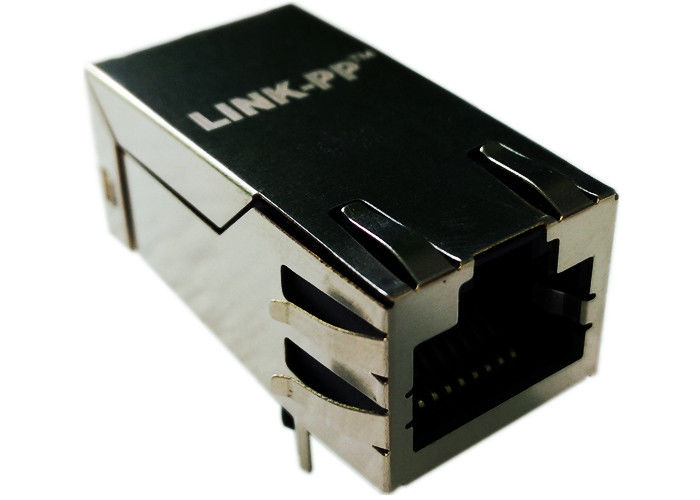

LPJK0071CNL Magnetic RJ45 Jack Cross 7499111000A IEEE 802.3ab 1000BaseT 0

Electrical Specifications @25℃

2.Turns Ratio(±2%):
TX=1CT:1 RX=1CT:1

1.OCL(100KHz,0.1V,8mA DC Bias):
350uH min
3.Insertion Loss:
1-100MHz:-1.0dB MAX
4.Return Loss(dB MIN):
1-10MHz:-20 30MHz:-16
60-80MHz:-12 80-100MHz:-10
5.Crosstalk(dB MIN):
1-10MHz:-40 32-65MHz:-35
65-100MHz:-30
6.CMR(dB MIN):
1-125MHz:-30 125-500MHz:-20
7.HI-POT:1500V
8.Operating Temperature: 0～70℃.

LPJK0071CNL Magnetic RJ45 Jack Cross 7499111000A IEEE 802.3ab 1000BaseT 1

LPJK0071CNL Magnetic RJ45 Jack Cross 7499111000A IEEE 802.3ab 1000BaseT 2
