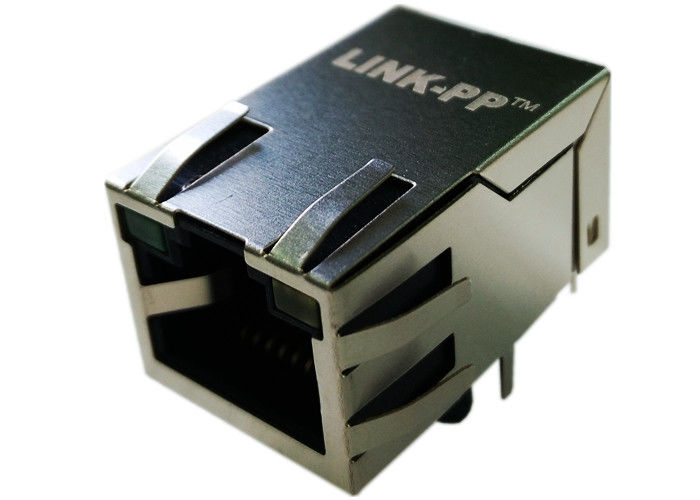

LPJ9011KONL PHY Interface Rj45 Magnetics Model 1x10/100Base-T LED Indicator

Name: LPJ9011KONL PHY Interface Rj45 Magnetics Model 1x10/100Base-T LED Indicator
Brand: LINK-PP
SKU: LPJ9011KONL
Rating: 5 (110 reviews)

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: LPJ9011KONL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Supportive

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4600K.PCS/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                rj45 with magnetics, rj45 magnetic jack


Specification:	LPJ9011KONL	Part No:	LPJ9011KONL
Ethernet:	Fast 10/100Mbps	Turn Ratio:	1:1
Mounting:	90 Degree Shield	Samples:	Available

Specification:	LPJ9011KONL
Part No:	LPJ9011KONL
Ethernet:	Fast 10/100Mbps
Turn Ratio:	1:1
Mounting:	90 Degree Shield
Samples:	Available

LPJ9011KONL PHY Interface Rj45 Magnetics Model 1x10/100Base-T LED Indicator

PHY Interface With Rj45 Magnetics LPJ9011KONL
1x Ethernet 10/100base-T Connectivity
Right Angle Ethernet Connectors
LED Indicator
Ground Tabs
1CT:1CT
-40℃～+85℃.

Electrical Specifications @25℃
1.Impedance: 100 ohms
2.OCL: 350uH Min
@100KHz,0.1Vrms,8mADC BIAS
3.Turns Ratio: 1∶1
4.Insertion Loss:
0.5-100MHz:-1.1dB Max
5.Return Loss(dB Min):
0.5-40MHz:-18
40.1-100MHz:-12-20LOG(f/50)
6.Crosstalk(dB Min):
0.5-40MHz:-35
40.1-100MHz:-33-20LOG(f/50)
7.Common Mode Rejection Ratio:
0.5-100MHz:-30 dB Min
8.Isolation Voltage: 1500Vrms Min
9.Operating Temperature: -40℃～+85℃.

LPJ9011KONL PHY Interface Rj45 Magnetics Model 1x10/100Base-T LED Indicator 0
