Home > products > Magnetic RJ45 Jack > JD0-0001NL Rj45 Equivalent LPJG0820GENL 10/100/1000 Mbps Ethernet Jack

JD0-0001NL Rj45 Equivalent LPJG0820GENL 10/100/1000 Mbps Ethernet Jack

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: JD0-0001NL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Supportive

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4600K.PCS/Month

Get Best Price
Highlight:

stacked rj45 connectors

,

rj45 with magnetics

Specification:
JD0-0001NL
Part No:
LPJG0820GENL
Ethernet:
1x10/100/1000 Mbps
Indicator:
LED Optional
Mounting:
R/A Shield
Samples:
Available Free
Specification:
JD0-0001NL
Part No:
LPJG0820GENL
Ethernet:
1x10/100/1000 Mbps
Indicator:
LED Optional
Mounting:
R/A Shield
Samples:
Available Free
JD0-0001NL Rj45 Equivalent LPJG0820GENL 10/100/1000 Mbps Ethernet Jack

JD0-0001NL Rj45 Equivalent LPJG0820GENL 10/100/1000 Mbps Ethernet Jack

  • 1x 10/100 Mbps MagJack-Rj45 Switching Ports
  • Telecom transformers and RJ45 modules Jack
  • LPJG0820GENL LINK-PP Cross JD0-0001NL
  • IEEE 802.3 10/100BASE-T Magnetic RJ45 Jack
  • Rj45 Right Angle PCB Connector
  • LPJG0820GENL: 0℃~70℃
  • LPJG4820GENL: -40℃~85℃





ELECTRICAL SPECFICATIONS @25℃
1.Turn Ratio(±2%):
TX=1CT:1CT RX=1CT:1CT
2.Inductance OCL:
350uH MIN @100KHz/0.1V,8mA DC Bias
3.Insertion Loss:
-1.0dB MAX @ 1-100MHz
4.Return Loss:
-18dB MIN @ 1-30MHz
-16dB MIN @ 30-60MHz
-12dB MIN @ 60-80MHz
5.Cross talk:
-30dB MIN @ 1-100MHz
6.Common Mode Rejection:
-30dB MIN @ 1-100MHz
7.Hipot Test:1500Vrms/1mA/2Sec
8.Operating Temperature Range:-40℃ TO 85℃

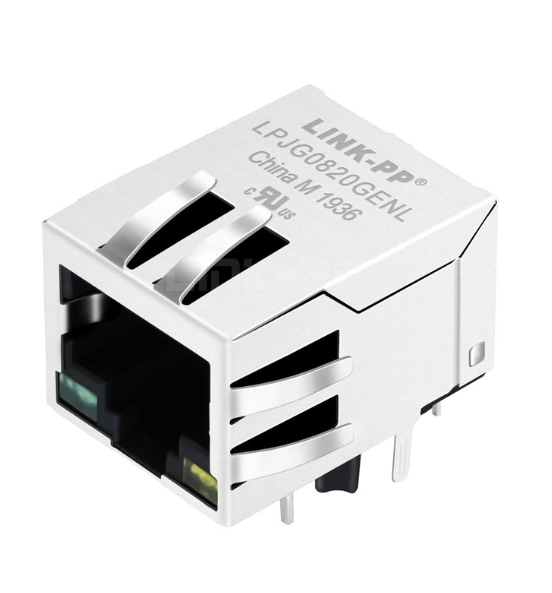

JD0-0001NL Rj45 Equivalent LPJG0820GENL 10/100/1000 Mbps Ethernet Jack 0

JD0-0001NL Rj45 Equivalent LPJG0820GENL 10/100/1000 Mbps Ethernet Jack 1
