J0C-0003NL / LPJ19113DNL Surface Mount Rj45 1x1 10/100Base-TX

Name: J0C-0003NL / LPJ19113DNL Surface Mount Rj45 1x1 10/100Base-TX
Brand: LINK-PP INT'L TECHNOLOGY CO., LIMITED
SKU: J0C-0003NL
Price: 372.50 USD
Availability: InStock

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: ISO9001,SGS,UL,CE,REACH,RoHS

Model Number: J0C-0003NL

Payment & Shipping Terms

Minimum Order Quantity: 720

Price: Supportive&Discount

Packaging Details: 120pcs/reel,6Reel=35*35*35cm=9KGS(720pcs)/Carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3000000/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                    rj45 smt connector, surface mount rj45 connector


Specification:	J0C-0003NL	Part No:	LPJ19113DNL
Ethernet:	1x10/100Mbps	Indicator:	None LEDs
Mounting:	SMD	Samples:	Available

Specification:	J0C-0003NL
Part No:	LPJ19113DNL
Ethernet:	1x10/100Mbps
Indicator:	None LEDs
Mounting:	SMD
Samples:	Available

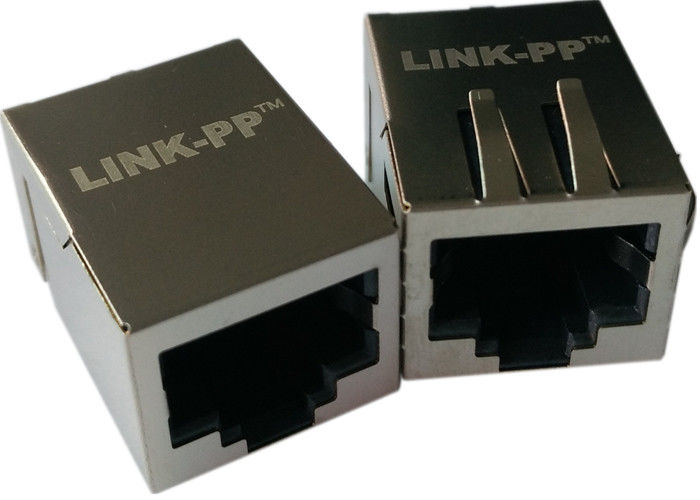

J0C-0003NL / LPJ19113DNL Surface Mount Rj45 1x1 10/100Base-TX

10/100Base-TX surface mount RJ45 single port (1x1) Tab-DOWN Without LEDs Integrated Magnetics Connector
Designed to support applications such as: Set Top Box and Network Interface Cards (NIC).
Link-PP LPJ19113DNL SMD Rj-45 Jack Shield Wo/LED Latch-down
Cross Pulse J0C-0003NL Specifications

Electrical Specification @25℃
1.Turns Ratio(±2%):
TX=1CT:1CT RX=1CT:1CT
2.OCL: 350uH Min
@100KHz,100mV,8mADC
3.Insertion Loss:
1-100MHz:-1.0dB Max
4.Return Loss(dB Min,@100Ω):
1-10MHz:-18 30MHz:-14
60-80MHz:-10
5.Crosstalk(dB Mim):
1-60MHz:-35 60-100MHz:-30
6.Common Mode Rejection:
1-130MHz:-20dB Min
7.Hipot: 1500Vrms
8.Operating Temperature: 0℃～70℃.

J0C-0003NL / LPJ19113DNL Surface Mount Rj45 1x1 10/100Base-TX 0
