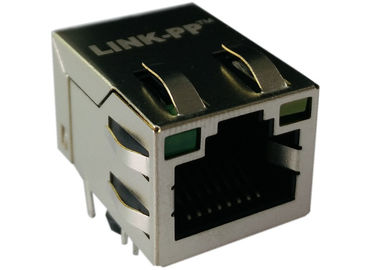

LPJ16183A28NL | Conn Rj45 1 x 10/100 Mbit Ethernet Port Data I/O

LPJ16183A28NL | Conn Rj45 1 x 10/100 Mbit Ethernet Port Data I/O
LPJ16183A28NL | Conn Rj45 1 x 10/100 Mbit Ethernet Port Data I/O LPJ16183A28NL | Conn Rj45 1 x 10/100 Mbit Ethernet Port Data I/O

Large Image :  LPJ16183A28NL | Conn Rj45 1 x 10/100 Mbit Ethernet Port Data I/O

Product Details:
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: LPJ16183A28NL
Payment & Shipping Terms:
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4200K-PCS/Month
Detailed Product Description
Specification: LPJ16183A28NL Mechanical: 21.25x15.90x13.40mm
Schematic: 6 Coils, 1CT:1;1CT:1 Ethernet: 1x 10/100Base
P/N: LPJ16183A28NL Samples: Free
High Light:

rj-45 ethernet jack

,

modular jacks rj45

LPJ16183A28NL | Conn Rj45 1 x 10/100 Mbit Ethernet Port Data I/O

  1. 10/100 Base-T | LPJ16183A28NL LINK-PP
  2. Dimension : 21.25x15.90x13.40mm
  3. Schematic : 6 Coils, 1CT:1;1CT:1
  4. Complies with requirement of IEEE802.3u standards.
  5. RJ 45 connector with 10/100 BASE-TX magnetic.
  6. Meet UL safety standard.
  7. Includes integrated 2 LEDS(option).
  8. LEDS are isolated to reduce cross talk and electro-magneticsinterference.
  9. Operating temperature range: 0℃ to +70℃.
  10. Storage temperature range: -40℃ to +85℃.
RJ45 Jack with 10/100 Base-T Integrated Magnetics,Green/Yellow LED,Tab Up,RoHS
LINK-PP Part Number LPJ16183A28NL
Application-Lan ETHERNET(NON PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 6
Diodes NO DIODES
LED Option GREEN/YELLOW
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.531
Package Height (mm) 13.45
Package Length (Inches) 0.839
Package Length (mm) 21.25
Package Width (Inches) 0.628
Package Width (mm) 15.95
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 10/100 BASE-T
Temperature 0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



1. Plastic Material : Thermoplastic (UL 94V-0), Black Housing.
2. Metal Shield : Brass, 20u inches thick Nickel
3. Spring Wire : Phosphor bronze with selective gold plating
4. Solder Pin : 0.4x0.4mm, Phosphor bronze with solder Plated
5. Durability : 750 Mating cycles Min.

LPJ16183A28NL | Conn Rj45 1 x 10/100 Mbit Ethernet Port Data I/O 0


LPJ16183A28NL | Conn Rj45 1 x 10/100 Mbit Ethernet Port Data I/O 1
