7490120110 Lan Transformer 10/100Base-Tx Poe Plus Magnetics SMD Module

China 7490120110 Lan Transformer 10/100Base-Tx Poe Plus Magnetics SMD Module supplier

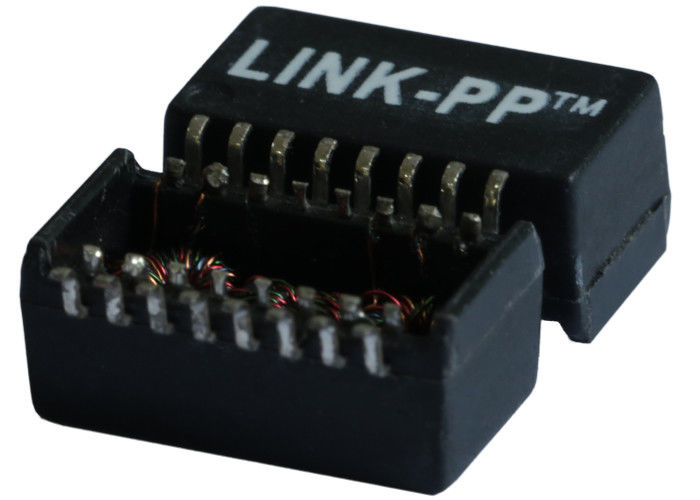

Large Image :  7490120110 Lan Transformer 10/100Base-Tx Poe Plus Magnetics SMD Module

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: 7490120110

Payment & Shipping Terms:

Minimum Order Quantity: 2000
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 4 weeks
Payment Terms: Paypal , T/T
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Specification: 7490120110 Cross: LP41XXXANL
Application: Power Over Ethernet Magnetic Pins: 16 Pins
Port: 1x 10/100Base-TX Hipot: 1500V
Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

7490120110 Lan Transformer 10/100Base-Tx Poe Plus Magnetics SMD Module



Specification Description 7490120110  Equivalent
REACH Compliant Yes
EU RoHS Compliant Yes
LINK-PP PN Cross LP41XXXANL
Status Active
Transformer Type DATACOM TRANSFORMER Current capability up to 600mA-720mA DC
Application Compliant with IEEE 802.3at for 10/100Base-TX-Applications
Approvals UL
Isolation Voltage 1500.0 V



Electrical Specifications @25℃
1.Turns Ratio:
TX=1:1 RX=1:1
2.OCL: 350uH MIN
@100KHz,100mV,8mADC Bias
3.Insertion Loss(dB MAX):
0.1MHz:-1.1 100MHz:-1.0
125MHz:-2.0
4.Return Loss(dB MIN):
30MHz:-18 60MHz:-12
80MHz:-12 100MHz:-10
5.Crosstalk(dB MIN):
30MHz:-43 60MHz:-37
100MHz:-33
6.Hipot(Vrms MIN): 1500



Other Compatible PN.



749010012A 7490140110 749022015 749020013
749014010 749010011 749024012 000-7430-30R-LF1
749014011 749010012 7490200136 000-7393-30R-LF1
