Model Number: H2006ANL
Document: LP2006ANL.pdf
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: 2 weeks
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specification: |
H2006ANL / H2006ANLT |
Cross P/N: |
LP2006ANL |
Speed: |
10/100 BASE-T |
Ports: |
Dual |
Application: |
LAN Ethernet (PoE) |
PIN Number: |
24 |
Temperature: |
0 To + 70℃ |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specification: |
H2006ANL / H2006ANLT |
Cross P/N: |
LP2006ANL |
Speed: |
10/100 BASE-T |
Ports: |
Dual |
Application: |
LAN Ethernet (PoE) |
PIN Number: |
24 |
Temperature: |
0 To + 70℃ |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |

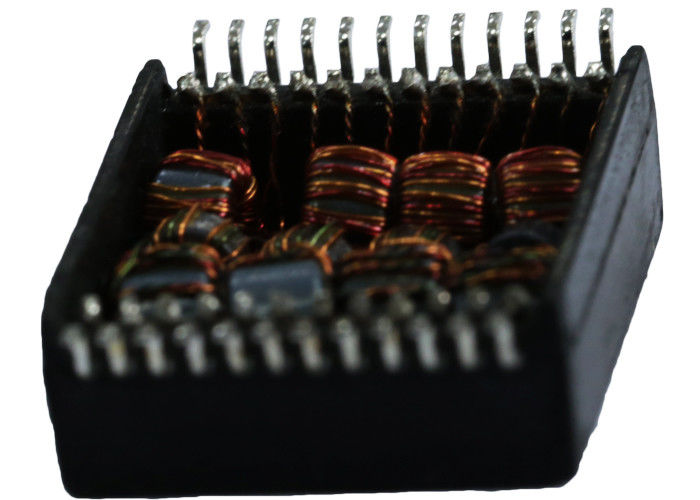

The H2006ANL / H2006ANLT is a dual-port PoE magnetic transformer module. It is primarily intended for 10/100 Base-TX Ethernet and supports Power over Ethernet (PoE) and Voice over Internet Protocol (VoIP) applications.
|
Description |
Dual Port Power Magnetics Transformer 10/100BaseTx |
|
REACH Compliant |
Yes |
|
EU RoHS Compliant |
Yes |
|
Status |
Active |
|
Transformer Type |
DATACOM TRANSFORMER |
|
Application |
10/100 BASE-TX; ETHERNET |
|
Approvals |
UL |
|
Isolation Voltage |
1500 V |
|
LINK-PP Equivalent |
LP2006ANL |
|
Manufacturer Series |
H2006ANL |
|
Mounting Feature |
SURFACE MOUNT |
|
Number of Functions |
2 |
|
Operating Temperature-Min |
0.0 Cel |
|
Operating Temperature-Max |
70.0 Cel |
|
Packing Method |
Tape-Reel |
|
Physical Dimension |
13.64mm X 11.94mm X 6.22mm |
|
Terminal Finish |
TIN |
|
Turns Ratio (Np:Ns) |
1:1; 1:1 |
|
Height |
6.22 mm |
|
Length |
13.64 mm |
|
Width |
11.94 mm |
|
Additional Feature |
HEIGHT DIM INCLUDES TERMINALS ALSO |
