16.4mm Height Vertical RJ45 Jack Female Connector Top Entry 8P8C Shield wo/LED

China 16.4mm Height Vertical RJ45 Jack Female Connector Top Entry 8P8C Shield wo/LED supplier
16.4mm Height Vertical RJ45 Jack Female Connector Top Entry 8P8C Shield wo/LED supplier 16.4mm Height Vertical RJ45 Jack Female Connector Top Entry 8P8C Shield wo/LED supplier 16.4mm Height Vertical RJ45 Jack Female Connector Top Entry 8P8C Shield wo/LED supplier 16.4mm Height Vertical RJ45 Jack Female Connector Top Entry 8P8C Shield wo/LED supplier

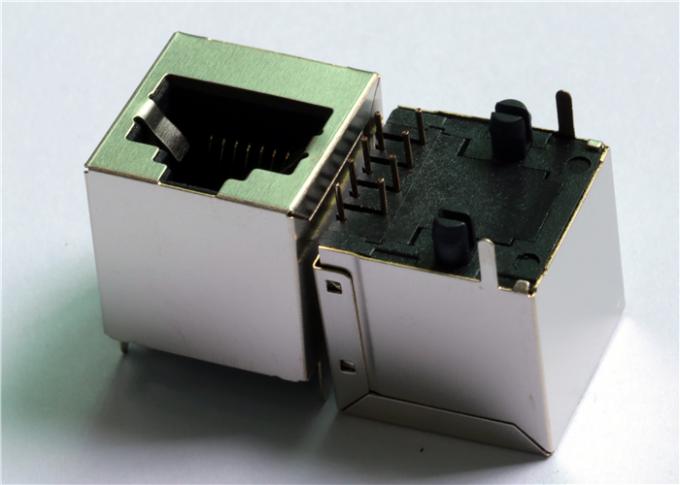

Large Image :  16.4mm Height Vertical RJ45 Jack Female Connector Top Entry 8P8C Shield wo/LED

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: LPJE601-0DNL

Payment & Shipping Terms:

Minimum Order Quantity: 540
Price: Supportive
Packaging Details: 54PCS/Tray,24Trays=37*30*30CM=1296PCS=10KG/Carton
Delivery Time: Stock or 5 weeks
Payment Terms: TT,Paypa,West Union
Supply Ability: 4300K.PCS/Month
Contact Now
Detailed Product Description
Specification: LPJE601-XDNL P.N: LPJE601-0DNL
Ethernet: CAT5, 5e Mounting: Shielded Wo/LED
Indicator: LED Flexible Samples: Available

16.4mm Height CAT5, 5e Vertical RJ45 Jack Female Connector Top Entry 8P8C Shield wo/LED
  • Ethernet Connectors Top Entry Connectivity
  • No Magnetic Inside connector LPJE601-XDNL
  • 180 Angles Degree Thru-Hole PCB Mounting Shield With LED
  • IEEE802.3 application
  • LPJE601XDNL

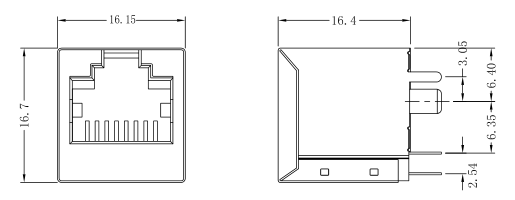

16.4mm Height Vertical RJ45 Jack Female Connector Top Entry 8P8C Shield wo/LED

Electrical:
1.Voltage Rating : 125VAC RMS
2.Current Rating : 1.5AMP
3.Contact Resistance : 20 MΩ MAX
4.Insulation Resistance : 500 MΩMin @500V DC
5.Dielectric Strength : 1000VAC RMS 60HZ,1MIN
Mechanical:
1.Housing&Insert Material : PBT UL94V-0
2.Contact Material : Diameter 0.46mm Phosphor Bronze
Gold Plating 15u Over Nickel
3.Shield : 0.20-0.25mm Thickness Brass
With Tin Plated
4.Operation Life : 750 Cycless Min
Environmental
1.Storage : -40℃ to +85℃ 2.Opertion : -40℃ to +85℃
3.Wave solder tip temperature: 265℃ Max, 5 Sec Max
UL Certification : File Number E484635



16.4mm Height Vertical RJ45 Jack Female Connector Top Entry 8P8C Shield wo/LED
