Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: AFBR-7QER10Z
Payment & Shipping Terms
Minimum Order Quantity: 10/100/25K
Price: $0.11-$35
Packaging Details: 20/Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 350K/Month
Specifications: |
AFBR-7QER10Z |
Data Rate: |
10.3125 GBd |
Wavelength: |
850nm |
Maximun Distance: |
- |
Fiber Type: |
Multimode Glass |
Emitter: |
VCSEL |
Voltage: |
3.3V |
Applications: |
Ethernet |
Connector: |
- |
Mounting: |
Pluggable,QSFP+ |
Environment: |
Lead Free / RoHS Compliant |
MSL: |
1(Unlimited) |
Specifications: |
AFBR-7QER10Z |
Data Rate: |
10.3125 GBd |
Wavelength: |
850nm |
Maximun Distance: |
- |
Fiber Type: |
Multimode Glass |
Emitter: |
VCSEL |
Voltage: |
3.3V |
Applications: |
Ethernet |
Connector: |
- |
Mounting: |
Pluggable,QSFP+ |
Environment: |
Lead Free / RoHS Compliant |
MSL: |
1(Unlimited) |
| Specifications: | AFBR-7QER10Z |
| LINK-PP Part Number: | LPXXXXXX |
| Product Class: | Fiber Optics |
| Product Family: | Optical Transceivers |
| Product Series: | QSFP+ |

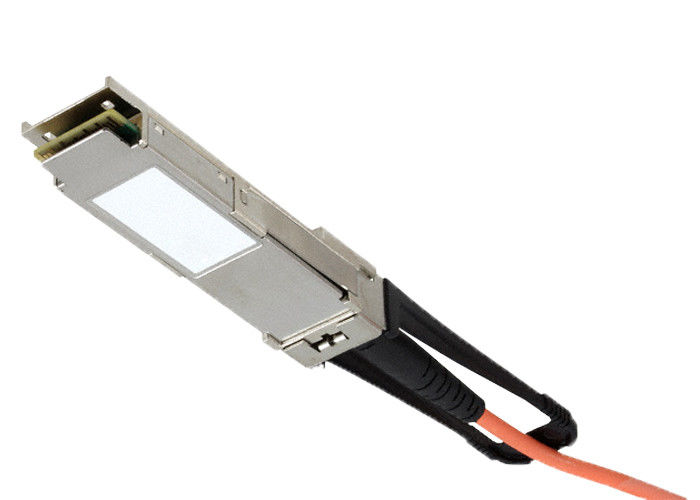

| Product Name: | QSFP+ Optical Transceivers |
| Status Available: | Limited Release |
| RoHS: | RoHS-6 Compliance |
|
Specifications:
|
|
|
Data Rate |
10.3125 GBd |
| Wavelength | 850nm |
| Maximun Distance | - |
| Fiber Type | Multimode Glass |
| Emitter | VCSEL |
| Voltage-Supply | 3.3V |
| Applications | Ethernet |
| Connector Type | - |
| Mounting Type | Pluggable,QSFP+ |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Moisture Sensitivity Level(MSL) | 1(Unlimited) |
|
Feature Description:
|
• Compliant to the 40GBASE-SR4 and XLPPI Specification
per IEEE 802.3ba-2010 and supporting 40G-IB-QDR/
20G-IB-DDR/10G-IB-SDR applications
• Compliant to the industry standard SFF-8436 QSFP+
Specification
• Power Level 1: Max Power < 1.5 W
• High port density: 21 mm horizontal port pitch
• Operate at 10.3125 Gbps per channel with 64b/66b
encoded data for 40GbE application and at 10 Gbps
with 8b/10b compatible encoded data for 40G-IB-QDR
application
• 0 to 70° C case temperature operating range
• Proven High Reliability 850 nm technology: Avago
VCSEL transmitter and Avago PIN receiver
• Hot pluggable for ease of servicing and installation
• Two Wire Serial (TWS) interface
• Utilizes optical fiber for high density and thin,
lightweight cable management
