Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: 6B2A-0412A-0
Payment & Shipping Terms
Minimum Order Quantity: 10/100/25K
Price: $0.11-$35
Packaging Details: 20/Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 350K/Month
Specifications: |
6B2A-0412A-0 |
Data Rate: |
40 Gbps |
Wavelength: |
850nm |
Maximun Distance: |
150m |
Fiber Type: |
Multimode Glass |
Emitter: |
VCSEL |
Voltage: |
3.3V |
Applications: |
General Purpose |
Connector: |
MTP(MPO) |
Mounting: |
Pluggable,QSFP+ |
Environment: |
Lead Free / RoHS Compliant |
MSL: |
1(Unlimited) |
Specifications: |
6B2A-0412A-0 |
Data Rate: |
40 Gbps |
Wavelength: |
850nm |
Maximun Distance: |
150m |
Fiber Type: |
Multimode Glass |
Emitter: |
VCSEL |
Voltage: |
3.3V |
Applications: |
General Purpose |
Connector: |
MTP(MPO) |
Mounting: |
Pluggable,QSFP+ |
Environment: |
Lead Free / RoHS Compliant |
MSL: |
1(Unlimited) |
| Specifications: | 6B2A-0412A-0 |
| LINK-PP Part Number: | LPXXXXXX |
| Product Class: | Fiber Optics |
| Product Family: | Optical Transceivers |
| Product Series: | QSFP+ |

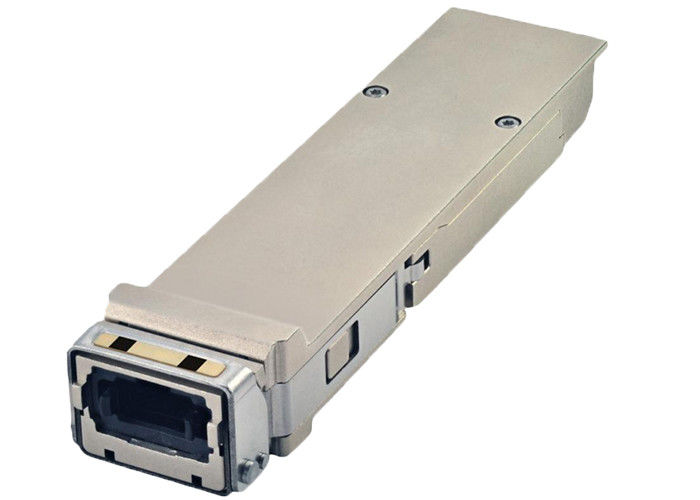

| Product Name: | QSFP+ Optical Transceivers |
| Status Available: | Limited Release |
| RoHS: | RoHS-6 Compliance |
|
Specifications:
|
|
|
Data Rate |
40 Gbps |
| Wavelength | 850nm |
| Maximun Distance | 150m |
| Fiber Type | Multimode Glass |
| Emitter | VCSEL |
| Voltage-Supply | 3.3V |
| Applications | General Purpose |
| Connector Type | MTP (MPO) |
| Mounting Type | Pluggable,QSFP+ |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Moisture Sensitivity Level(MSL) | 1(Unlimited) |
|
Feature Description:
|
• An alternative solution of IEEE 802.3ba 40GBASE-LR4
modules to extend the support of MMF reach with low
power and low cost in the data center applications
• Compliant to the 40GbE IEEE 802.3ba-2010
specifications (40GBASE-SR4 and XLPPI) and per
channel basis to the IEEE 802.3ae 10GBASE-SR optical
specification
• Fiber links to a QSFP+ eSR4 module up to 300m (400m)
using OM3 (OM4) MMF, and to a QSFP+ SR4 module up
to 100m (150m) using OM3 (OM4) MMF
