Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: AFCT-5715ALZ
Payment & Shipping Terms
Minimum Order Quantity: 10/100/25K
Price: $0.11-$35
Packaging Details: 20/Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 350K/Month
Specifications: |
AFCT-5715ALZ |
Data Rate: |
1.25 Gbd |
Wavelength: |
1300nm |
Maximun Distance: |
10m |
Fiber Type: |
Singlemode Glass |
Emitter: |
FP Laser |
Voltage: |
3.14V~3.47V |
Applications: |
Ethernet |
Connector: |
LC Duplex |
Mounting: |
Pluggable,SFP |
Environment: |
Lead Free / RoHS Compliant |
MSL: |
1(Unlimited) |
Specifications: |
AFCT-5715ALZ |
Data Rate: |
1.25 Gbd |
Wavelength: |
1300nm |
Maximun Distance: |
10m |
Fiber Type: |
Singlemode Glass |
Emitter: |
FP Laser |
Voltage: |
3.14V~3.47V |
Applications: |
Ethernet |
Connector: |
LC Duplex |
Mounting: |
Pluggable,SFP |
Environment: |
Lead Free / RoHS Compliant |
MSL: |
1(Unlimited) |
| Specifications: | AFCT-5715ALZ |
| LINK-PP Part Number: | LPXXXXXX |
| Product Class: | Fiber Optics |
| Product Family: | Optical Transceivers |
| Product Series: | SFF |

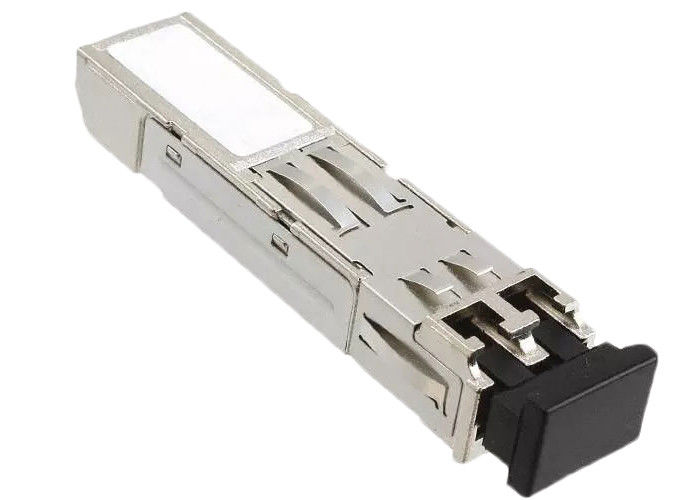

| Product Name: | SFF Optical Transceivers |
| Status Available: | Active |
| RoHS: | RoHS-6 Compliance |
|
Specifications:
|
|
|
Data Rate: |
1.25 Gbd |
| Wavelength: | 1300nm |
| Maximun Distance: | 10m |
| Fiber Type: | Singlemode Glass |
| Emitter: | FP Laser |
| Voltage-Supply: | 3.14V~3.47V |
| Applications: | Ethernet |
| Connector Type: | LC Duplex |
| Mounting Type: | Pluggable,SFP |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Moisture Sensitivity Level(MSL): | 1(Unlimited) |
|
Feature Description:
|
• ROHS-6 Compliant
• Optional Digital Diagnostic Monitoring available
- AFCT-5701Z family: without DMI
- AFCT-5705Z family: with DMI
• Per SFF-8472, diagnostic features on AFCT-5705Z family enable Diagnostic Monitoring Interface for optical transceivers with real-time monitoring of:
- Transmitted optical power
- Received optical power
- Laser bias current
- Temperature
- Supply voltage
• Compliant to IEEE 802.3Z Gigabit Ethernet (1.25 GBd) 1000BASE-LX & ANSI Fibre Channel Physical Interfaces (FC-PI 100-SM-LC-L)
• Small Form Factor Pluggable (SFP) Multi-Source Agreement (MSA) compliant
• Manufactured in an ISO 9001 compliant facility
• Hot-pluggable
• Temperature options
(Extended) -10°C to +85°C
(Industrial) -40°C to +85°C
• +3.3 V dc power supply
• 1310 nm longwave laser
• Eye safety certifi ed:
- US 21 CFR(J)
- IEC 60825-1 (+All)
• LC-Duplex fi ber connector compatible
• Link Lengths at 1.0625 GBd:
- up to 10 km - SMF
• Link Lengths at 1.25 GBd:
- 0.5 to 550 m - 50 μm MMF
- 0.5 to 550 m - 62.5 μm MMF
- 0.5 m to 10 km - SMF
