Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: AFBR-57L5APZ
Payment & Shipping Terms
Minimum Order Quantity: 10/100/25K
Price: $0.11-$35
Packaging Details: 20/Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 350K/Month
Specifications: |
AFBR-57L5APZ |
Data Rate: |
1.25 Gbps |
Wavelength: |
850nm |
Maximun Distance: |
500m |
Fiber Type: |
Multimode Glass |
Emitter: |
VCSEL |
Voltage: |
3.3V |
Applications: |
Ethernet |
Connector: |
LC Duplex |
Mounting: |
Pluggable,SFP |
Environment: |
Lead Free / RoHS Compliant |
MSL: |
3 (168 Hours) |
Specifications: |
AFBR-57L5APZ |
Data Rate: |
1.25 Gbps |
Wavelength: |
850nm |
Maximun Distance: |
500m |
Fiber Type: |
Multimode Glass |
Emitter: |
VCSEL |
Voltage: |
3.3V |
Applications: |
Ethernet |
Connector: |
LC Duplex |
Mounting: |
Pluggable,SFP |
Environment: |
Lead Free / RoHS Compliant |
MSL: |
3 (168 Hours) |
| Specifications: | AFBR-57L5APZ |
| LINK-PP Part Number: | LPXXXXXX |
| Product Class: | Fiber Optics |
| Product Family: | Optical Transceivers |
| Product Series: | SFP |

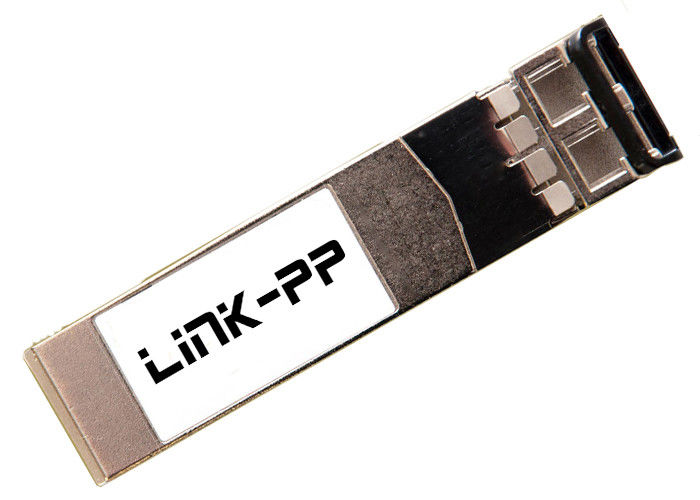

| Product Name: | SFP Optical Transceivers |
| Status Available: | Active |
| RoHS: | RoHS-6 Compliance |
|
Specifications:
|
|
|
Data Rate: |
1.25Gbps |
| Wavelength: | 850nm |
| Maximun Distance: | 500m |
| Fiber Type: | Multimode Glass |
| Emitter: | VCSEL |
| Voltage-Supply: | 3.3V |
| Applications: | Ethernet |
| Connector Type: | LC Duplex |
| Mounting Type: | Pluggable,SFP |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Moisture Sensitivity Level(MSL): | 3(168 Hours) |
|
Feature Description:
|
• Fully RoHS Compliant
• Diagnostic features per SFF-8472 “Diagnostic Monitoring
Interface for Optical Transceivers”
• Real time monitoring of:
– Transmitted optical power
– Received optical power
– Laser bias current
– Temperature
– Supply voltage
• Wide temperature and supply voltage operation
(–10°C to 85°C) (3.3 V ± 10%)
• Transceiver specifications per SFP (SFF-8074i) MultiSource
Agreement and SFF-8472 (revision 9.3)
– 1.0625 GBd Fibre Channel operation for FC-PI
100-M5-SN-I and 100-M6-SN-I
– 1.25 GBd operation for IEEE 802.3 Gigabit Ethernet
1000Base-SX
• Link lengths at 1.0625 GBd:
– 500m with 50µm MMF, 300 m with 62.5µm MMF
• Link lengths at 1.25 GBd:
– 2 to 550m with 50µm MMF, 2 to 275 m with 62.5µm
MMF
• LC Duplex optical connector interface conforming to
ANSI TIA/EIA604-10 (FOCIS 10A)
• 850 nm Vertical Cavity Surface Emitting Laser (VCSEL)
source technology
• IEC 60825-1 Class 1/CDRH Class 1 laser eye safe
|
Applications:
|
• Fibre channel systems:
– Director class switches
– Fabric switches – HBA cards
• Disk and tape drive arrays
|
Related Products:
|
• AFBR-59R5LZ:850 nm +3.3V LC SFF 2x7 for 4.25/2.125/1.0625 GBd Fibre Channel
• AFBR-57R5APZ:850 nm +3.3V LC SFP for 4.25/2.125/1.0625 GBd Fibre Channel
