AFCT-701ASDZ SFP+ Fiber Optic Transceiver Module Ethernet LC Duplex Pluggable

China AFCT-701ASDZ SFP+ Fiber Optic Transceiver Module Ethernet LC Duplex Pluggable supplier

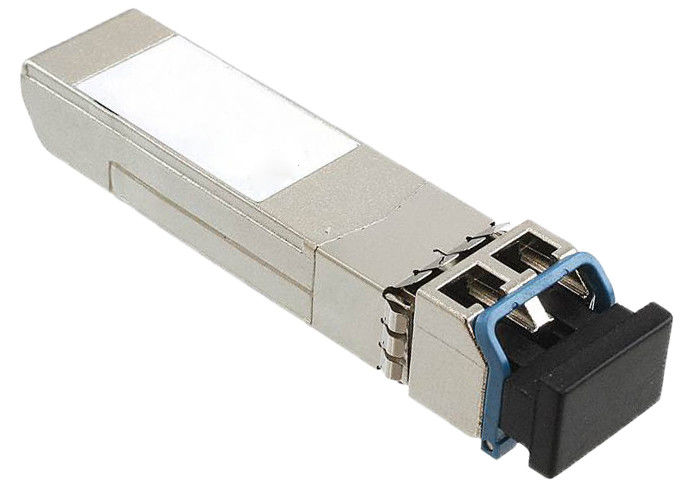

Large Image :  AFCT-701ASDZ SFP+ Fiber Optic Transceiver Module Ethernet LC Duplex Pluggable

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: AFCT-701ASDZ

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Supportive
Packaging Details: 10PCS/tray,100pcs/carton
Delivery Time: Stock or 2-3 weeks
Payment Terms: TT,Paypa,West Union
Supply Ability: 420000K/Month
Contact Now
Detailed Product Description
Specifications: AFCT-701ASDZ Data Rate: 10.312Gbd
Wavelength: 1310nm Maximun Distance: 10000m
Fiber Type: Singlemode Glass Emitter: DWDM EML
Voltage: 3.3V Applications: Ethernet
Connector: LC Duplex Mounting: Pluggable,SFP+
Environment: Lead Free / RoHS Compliant MSL: 1 (Unlimited)

AFCT-701ASDZ SFP+ Fiber Optic Transceiver Module Ethernet LC Duplex Pluggable

Specifications: AFCT-701ASDZ
Product Class: Fiber Optics
Product Family: Optical Transceivers
Product Series: SFP+
Product Name: SFP+ Optical Transceivers
Status Available: Active
RoHS: RoHS-6 Compliance



Specifications:



Data Rate:



10.312Gbd

Wavelength: 1310nm
Maximun Distance: 10000m
Fiber Type: Singlemode Glass
Emitter: DWDM EML
Voltage-Supply: 3.3V
Applications: Ethernet
Connector Type: LC Duplex
Mounting Type: Pluggable,SFP+
Lead Free Status / RoHS Status: Lead Free / RoHS Compliant
Moisture Sensitivity Level(MSL): 1 (Unlimited)



Feature Description:



● 1310nm DFB source and Transmitter OpticalSubassembly technology
● PIN detector and Receiver Optical Subassemblytechnology
● Typical power dissipation 850mW
● Extended case temperature 0℃~85℃
● Full digital diagnostic management interface
● SFP+ package design enables equipment EMIperformance in high port density applications with margin to Class B limits



Feature Description:



● Optical interface specifications per IEEE 802.3ae 10GBASE-LR
● Electrical interface specifications per SFF Committee SFF 8431 Specifications for Enhanced      8.5 and10 Gigabit Small Form Factor Pluggable Module “SFP+”
● Management interface specifications per SFF Committee SFF 8431 and SFF 8472 Diagnostic
 Monitoring Interface for Optical Transceivers
● Mechanical specifications per SFF Committee SFF 8432 Improved Pluggable Formfactor “IPF”
● LC Duplex optical connector interface confirming to ANSI TIA/EA 604-10 (FOCIS 10A)
● Compliant to Restriction on Hazardous Substances(RoHS) per EU and China requirements
● Class 1 Eye safe per requirements of IEC 60825-1/CDRH



Feature Description:



● AFCT-701SDZ SFP+ 10 Gigabit Ethernet 10GBASE-LR transceiver with case temperature operated at 0℃-70℃ C for operation in SMF link applications to 10 km

● AFBR-707SDZ SFP+ 10 Gigabit Ethernet 10GBASELRM transceiver for 220 meter operation in all MMF link applications including OM1 and OM2 legacy fiber cables and new high bandwidth OM3 fiber cables.

● The AFBR-703SDZ (AFBR-703ASDZ) with case temperature 0°C-70°C (0°C-85°C)is an SFP+ 10 Gigabit Ethernet 10GBASE-SR transceiver for use on multimode fiber cables. It is best suited for OM3 high bandwidth MMF link applications with link lengths up to 300 meters.

●  AFCT-5016Z SFP+ Evaluation Board The purpose of this SFP+ evaluation board is to provide the designer with a convenient means for evaluating SFP+ fiber optic transceivers.
