LPJE101CNL RJ45 Single Port Shield Modular Jack

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: 615008140621(LPJE101CNL)

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 250000-320000/Month

Get Best Price
Highlight:

LPJE101CNL Single Port RJ45 Connector

,

8P8C RJ45 Connector without Magnetics

,

615008140621 RJ45 Modular Jack

Number Of Positions:
8 Position
Number Of Contacts:
8 Contact
Mounting Angle:
Right Angle
Jack Gender:
Female
Shielded:
Yes
Termination Style:
Solder
Number Of Positions:
8 Position
Number Of Contacts:
8 Contact
Mounting Angle:
Right Angle
Jack Gender:
Female
Shielded:
Yes
Termination Style:
Solder
LPJE101CNL RJ45 Single Port Shield Modular Jack

PCB JACK Specification:

RJ45 Connector without Magnetics - LINK-PP LPJE101CNL



1. Insulation Resistance: 500MΩMIN @ 500 VDC
2. Withstanding Voltage: AC1000V 50Hz or 60Hz 1min.
3. Durability: 600 Mating Circles MIN.
4. Gold Plating:(Gold Flash;1.5;3;6;15;30;50)u" inch
5. (1) Storage temperature: -40℃ to +85℃
    (2) Operation temperature: -40℃ to +85℃
    (3)Wave solder temperature: 230℃ to 250℃,5~10 Sec.


LPJE101CNL Technical Parameters :

Items

Shielded 1x1 Port 8P8C RJ45 Connector without Magnetics

LINK-PP Part Number LPJE101CNL

Wurth Elektronik Part Number

615008140621
Part Status Active
Number of Ports 1
Number of Rows 1
Mounting Type Through Hole
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Non-PoE
Number of Ports Single Port RJ45 Connector
Latch Up
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Without LEDs
PCB FR4
PCB Retaining Post T POST
Connector Height 13.10mm
Connector Length 15.75mm
Connector Width 16.25mm
Operation Temperature -40℃ up to +85℃
Bst Circuit Yes
AutomDX YES
Diodes No
Unit Weight 0.137921 oz

615008140621(LPJE101CNL) RJ45 Datasheet :

LPJE101CNL.pdf

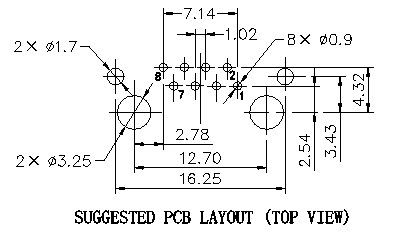

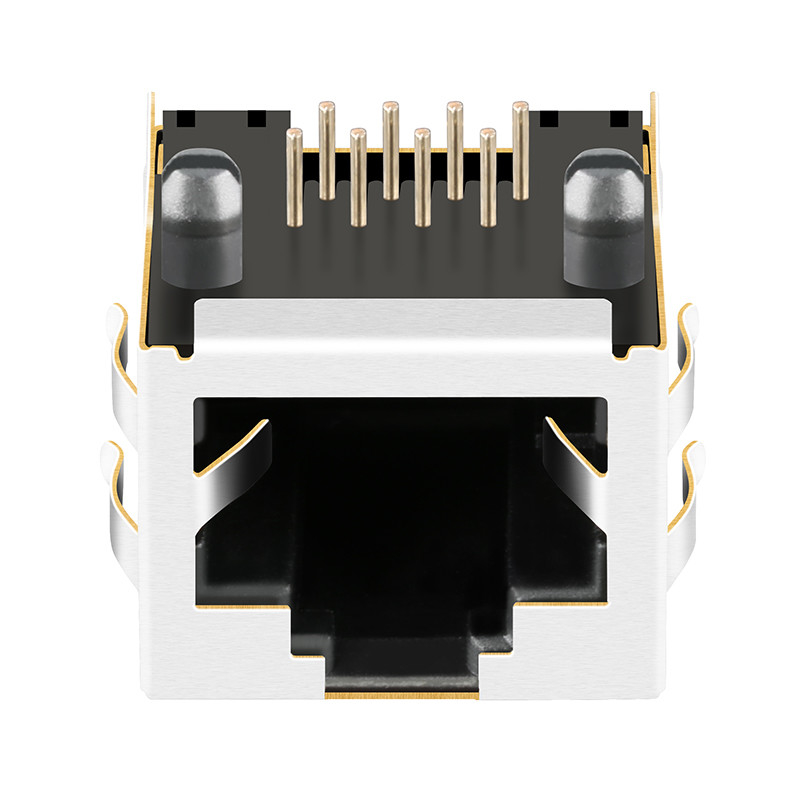

LPJE101CNL RJ45 Single Port Shield Modular Jack 0LPJE101CNL RJ45 Single Port Shield Modular Jack 1
