RJ45 USB Connector LPJE305AGNL

Name: RJ45 USB Connector LPJE305AGNL
Brand: LINK-PP
SKU: LPJE305AGNL
Price: 0.11 USD
Availability: InStock
Rating: 4.8 (104 reviews)

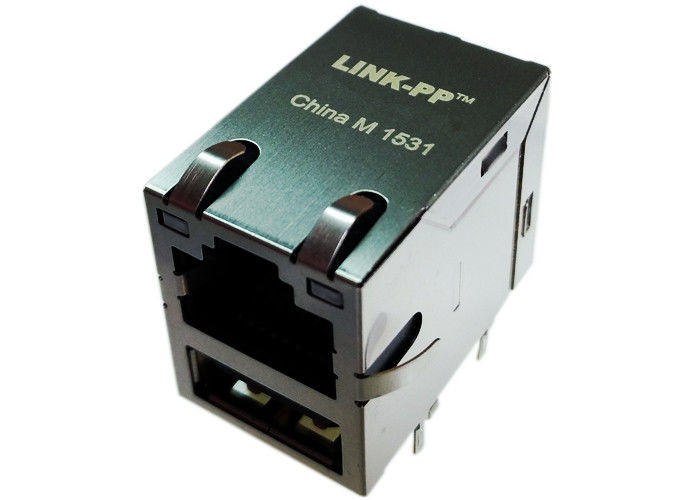

Large Image : RJ45 USB Connector LPJE305AGNL

Product Details:

Place of Origin:	China
Brand Name:	LINK-PP
Certification:	UL,RoHS,Reach,ISO
Model Number:	LPJE305AGNL

Payment & Shipping Terms:

Minimum Order Quantity:	50/500/1000/60K
Price:	$0.11-$24
Packaging Details:	Tray
Delivery Time:	Stock
Payment Terms:	TT,NET30/60/90 Days
Supply Ability:	180K/Month

Contact Now

Detailed Product Description

Specification:	LPJE305AGNL	Shielded:	Yes
Mounting:	Side Entry R/A	Category:	Cat3/5/5e
USB:	2.0	Samples:	Available
High Light:	rj45 naar usb , rj45 usb connector combo

USB2.0 Rj45 Stack 2x1 Connector LEDs LPJE305AGNL

RJ45 Female Jack with USB2.0
Rj45+1USB Jack With LED Indicators
Rj45 Without Magnetics Inside

NOTES:Electrical:
1.Voltage:125VAC RMS.
2.Current Rating:1.5A.
3.Contact Resistance:30 Millohms max.
4.Insulation Resistance:500 Megohms Min @500VDC.
5.Dielectric Strength:1000VAC RMS 50Hz 1Min.

6.RJ-45 Contact plating: Gold 6 micro-inches min.
In contact area
USB Contact plating: Gold flash

7.Gold Plating:(Gold Flash;1.5;3;6;15;30;50)U" Inch
8.Wave solder temperture: 230℃ to 250℃,5～10 Sec.

MECHANICAL:
1.Housing Material:Glass Filled Polyester UL94V-0.
2.Contact Material:Phosphor Bronze %%C 0.45mm.
3.Plating:Gold Plating Over Nickel.
4.Operating:750 Cycles Min.
5.Shield 0.23mm Thickness Copper Alloy With Nickel
Plated.
6.PCB Retention Pre-Solder:1 LB Min.
Environmental:
1.Temperature Range:-45℃～+85℃.
2.Relative Humidity:90～95%(40±2℃)
