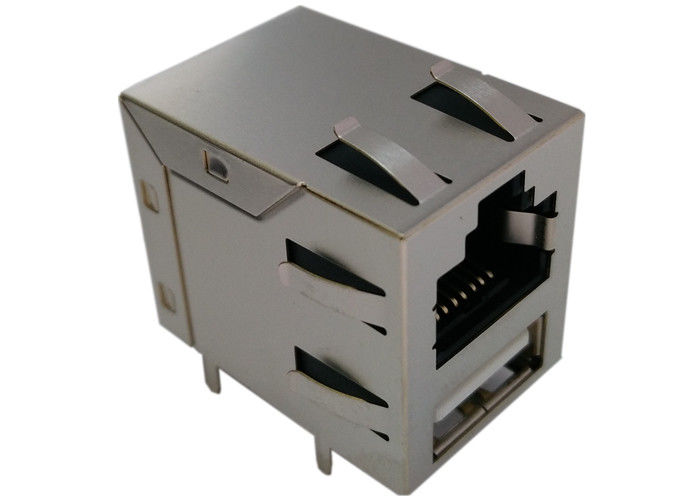

RJ45 + USB2.0 Jack Without LED LPJE305DNL

RJ45 + USB2.0 Jack Without LED LPJE305DNL
RJ45 + USB2.0 Jack Without LED LPJE305DNL RJ45 + USB2.0 Jack Without LED LPJE305DNL RJ45 + USB2.0 Jack Without LED LPJE305DNL

Large Image :  RJ45 + USB2.0 Jack Without LED LPJE305DNL

Product Details:
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: LPJE305DNL
Payment & Shipping Terms:
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Contact Now
Detailed Product Description
Specification: LPJE305DNL Shielded: Yes
PCB: Side Entry (Right Angle) Port: Rj45+USB2.0
Gender: Female Samples: Available
High Light:

rj45 naar usb

,

rj45 usb connector combo

RJ45 + USB2.0 Jack Without LED LPJE305DNL

  • Rj45 USB Connector Combo
  • USB Female With Rj45 Without Magnetics



NOTES:Electrical:
1.Voltage:125VAC RMS.
2.Current Rating:1.5A.
3.Contact Resistance:30 Millohms max.
4.Insulation Resistance:500 Megohms Min @500VDC.
5.Dielectric Strength:1000VAC RMS 50Hz 1Min.

6.RJ-45 Contact plating: Gold 6 micro-inches min.
In contact area
USB Contact plating: Gold flash



RJ45 + USB2.0 Jack Without LED LPJE305DNL 0 RJ45 + USB2.0 Jack Without LED LPJE305DNL 1



MECHANICAL:
1.Housing Material:Glass Filled Polyester UL94V-0.
2.Contact Material:Phosphor Bronze %%C 0.45mm.
3.Plating:Gold Plating Over Nickel.
4.Operating:750 Cycles Min.
5.Shield 0.23mm Thickness Copper Alloy With Nickel
Plated.
6.PCB Retention Pre-Solder:1 LB Min.
Environmental:
1.Temperature Range:-45℃～+85℃.
2.Relative Humidity:90～95%(40±2℃)

Tag:

industrial rj45 connector,

rj-45 ethernet jack,

modular jacks rj45
