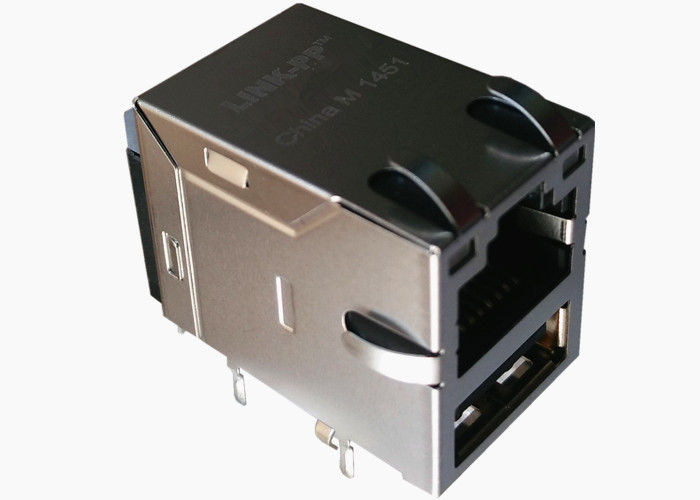

10/100 Magnetics RJ45 USB Connector LPJU3401AONL

10/100 Magnetics RJ45 USB Connector LPJU3401AONL
10/100 Magnetics RJ45 USB Connector LPJU3401AONL 10/100 Magnetics RJ45 USB Connector LPJU3401AONL

Large Image :  10/100 Magnetics RJ45 USB Connector LPJU3401AONL

Product Details:
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: LPJU3401AONL
Payment & Shipping Terms:
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Detailed Product Description
Specification: LPJU3401AONL Ethernet: 1x10/100Mbps
PCB Mounting Orientation: Side Entry (Right Angle) Turn Ratio: 1:1
Connector: Female Jack Samples: Available
High Light:

rj45 to usb connector

,

rj45 usb connector combo

10/100 Magnetics Rj45 Stack USB2.0 LPJU3401AONL


  1. Magnetics Rj45 Stack USB2.0
  2. 10/100Mbps Transformer Rj45 With SIngle Port USB Connector
  3. USB Stacked Transformers 1x2 RJ45 Connector

Electrical Specifications @25℃
1.OCL: 350uH MIN
@ 100KHz/100mVrms 8mA DC Bias
2.Turns Ratio:
TX=1CT:1CT RX=1CT:1CT
3.Insertion Loss:
1~100MHz:-1.0dB MAX
4.Return Loss(dB MIN. load 100Ω):
1~30MHz:-18
30~60MHz:-16
60~80MHz:-12
5.Crosstalk(TX - RX):
1~100MHz:-30dB MIN
6.CMR:
1~100MHz:-30dB MIN
7.Hipot: 1500Vrms/0.5mA/60Sec
8.Operating Temperature: -40℃~+85℃.
10/100 Magnetics RJ45 USB Connector LPJU3401AONL 0 10/100 Magnetics RJ45 USB Connector LPJU3401AONL 1
10/100 Magnetics RJ45 USB Connector LPJU3401AONL 2
