10/100 Base - T SMT RJ45 Connector

10/100 Base - T SMT RJ45 Connector
10/100 Base - T SMT RJ45 Connector

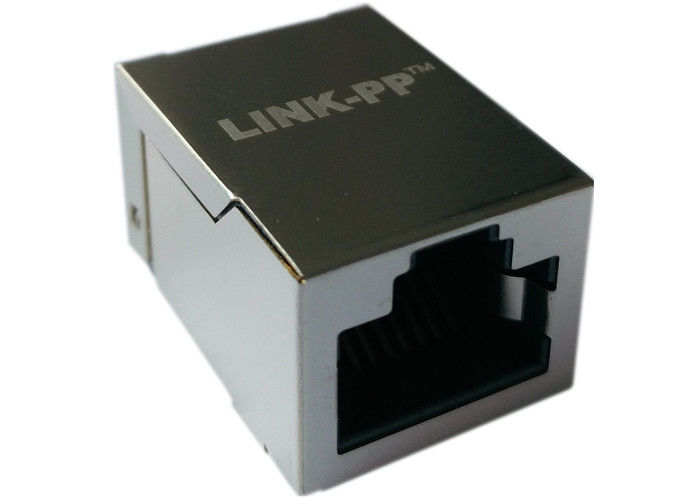

Large Image :  10/100 Base - T SMT RJ45 Connector

Product Details:
Place of Origin: China
Brand Name: LINK-PP
Certification: SGS, UL,CE,ISO9001,Reach,RoHS
Model Number: LPJ19201DNL
Payment & Shipping Terms:
Minimum Order Quantity: 900
Price: Supportive
Packaging Details: 150PCS/Reel,6Reels=900PCS=35.5*35.5*35cm=10KG
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000K/month
Detailed Product Description
Product Name: LPJ19201DNL Gender: Female
Ethernet: 1x10/100Mbps IEEE802.3 Indicator: LED Flexible
Ratio Turn: 1:1 Samples: Available
Highlight:

rj45 smt connector

,

ultra low profile jack

10/100Base-T SMD Rj-45 Magnetics Jack LPJ19201DNL



SMT rj 45 modular plug for 10/100Mbps Ethernet
Surface Mount Rj45 Connector Without LED
SMT MAGJack Network Interface Module
1500Vrms Isolation

1:1 Turn Ratio


Electrical Specification@25℃:
1.Turns Ratio(±2%) :
TX=1CT:1CT RX=1CT:1CT
2.OCL: 350uH Min
@100KHz 100mVrms 8mA DC bias current
3.Insertion Loss(dB Max):
1-80MHz:-1.0 100MHz:-1.2
4.Return Loss(dB Min @100Ω):
1-60MHz:-14 60-100MHz:-10
5.Crosstalk: 1-80MHz:-35dB Min
6.IR Reflow peak temperature: 260 degc.
7.Isolation Voltage: 1500Vrms Min
8.Operating Temperature: 0℃~70℃
