Surface Mouting SMT RJ45 Connector

China Surface Mouting SMT RJ45 Connector supplier

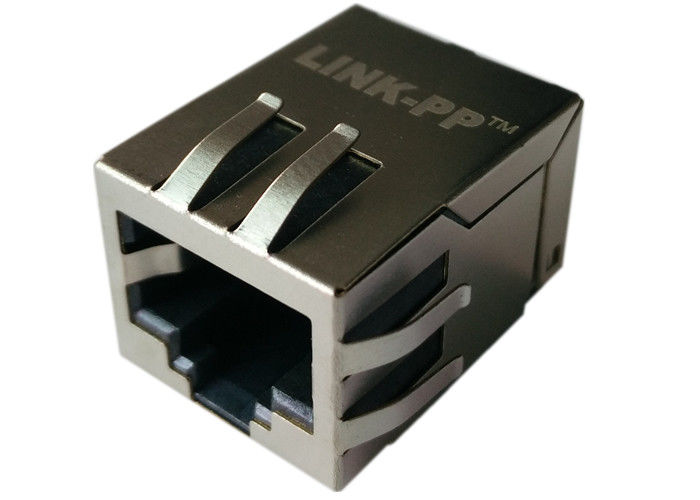

Large Image :  Surface Mouting SMT RJ45 Connector

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: SGS, UL,CE,ISO9001:2008,Reach,RoHS
Model Number: LPJ19111CNL

Payment & Shipping Terms:

Minimum Order Quantity: 720
Price: Supportive
Packaging Details: 120pcs/reel,6 Reel=35*35*35 cm=9KGS=720 pcs/Carton
Delivery Time: Stock or 4 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Specification: LPJ19111CNL Gender: Female
Orientation: Latch-down Indicators: None LEDs
Speed: 10/100Mbps Samples: Available

Surface Mouting Rj45 10/100Mbos,Lat-down None LED LPJ19111CNL


  • SMT rj 45 modular jack Tab-down Model
  • 1x10/100Base-T Fast Ethernet RJ45 Jack
  • SMD Modular Connector RJ45 without leds
  • Magnetics Surface RJ45 Female Connector
Surface Mouting SMT RJ45 Connector
Customer P/N:   LINK-PP P/N: LPJ19111CNL Quantity: 5PCS
Test Description SPEC 1 2 3 4 5 TEST FREQ.
TX RX TX RX TX RX TX RX TX RX
OCL 350uH MIN 575 570 563 561 580 578 612 609 588 576 100KHz 0.1V 8mA
Turn Ratio(±2%) TX 1CT:1CT OK OK OK OK OK OK OK OK OK OK ---
RX 1CT:1CT
Insertion Loss -1.0dB MAX -0.23 -0.22 -0.21 -0.20 -0.28 -0.22 -0.23 -0.24 -0.27 -0.22 1-65MHz
Return Loss -18dB MIN -35.5 -33.1 -36.7 -37.6 -31.5 -30.4 -34.3 -31.1 -36.2 -33.6 1-10MHz
-14dB MIN -28.2 -27.8 -29.2 -28.8 -28.5 -29.3 -28.8 -27.6 -26.9 -27.5 30MHz
-10dB MIN -15.7 -14.9 -14.5 -14.1 -13.8 -14.7 -15.2 -14.5 -16.2 -14.8 60-100MHz
Crosstalk -35dB MIN -42.4 -40.7 -38.1 -40.4 -38.6 1-60MHz
-30dB MIN -36.4 -34.0 -33.6 -37.1 -33.9 60-100MHz
Common Mode Rejection -20dB MIN -38.1 -35.6 -39.5 -37.1 -37.1 -33.7 -36.7 -38.3 -33.6 -35.8 1-130MHz
Hipot Isolation 1500Vrms MIN OK OK OK OK OK OK OK OK OK OK PRI TO SEC
