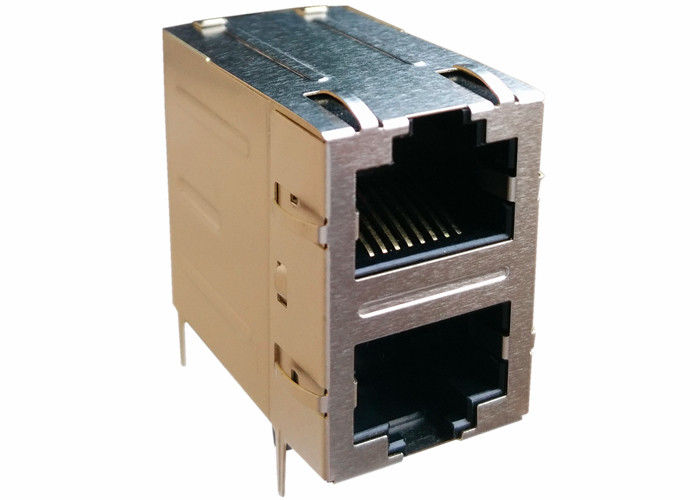

2 x Stacked RJ45 LPJE17208CNL Up - Down

2 x Stacked RJ45 LPJE17208CNL Up - Down
2 x Stacked RJ45 LPJE17208CNL Up - Down

Large Image :  2 x Stacked RJ45 LPJE17208CNL Up - Down

Product Details:
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: LPJE17208CNL
Payment & Shipping Terms:
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Detailed Product Description
Specification: LPJE17208CNL Part NO: LPJE17208CNL
Indicator: No-LED Application: HUB, PC Card, Switch, Router Etc
Mounting: Through Hole Samples: Available
Highlight:

stacked rj45 connectors

,

modular jacks rj45

2x Stacked RJ45 LPJE17208CNL up-down Jack None Magnetics

  • LPJE17208CNL LINK-PP Rj45
  • 2x Rj45 Lan Ports
  • Rj45 2x1 Jack
  • 2x Rj45 8P8C Without Integrated Magnetic



SPECIFICATION:
1.Electrical Char.
Insulation Resistance: 500M-Ohm Min.
Contact Resistance: 20milli-Ohm Max.
Rating Current: 1.5A Max.
Rating Voltage: 120V AC.
Dielectric Voltage: 1000 Vrms 60 Sec Min.
2.Physical char.
Housing: PBT Glass Filled (UL 94V-0)
Color: Black Color
Spring Wire: 0.35mm Thickness Phosphor Bronze
Gold Plating Over Nickel.
Temperature Range: -40℃/+85℃
Durability: 600 Mating cycles Min.



2 x Stacked RJ45 LPJE17208CNL Up - Down 0 2 x Stacked RJ45 LPJE17208CNL Up - Down 1
2 x Stacked RJ45 LPJE17208CNL Up - Down 2
