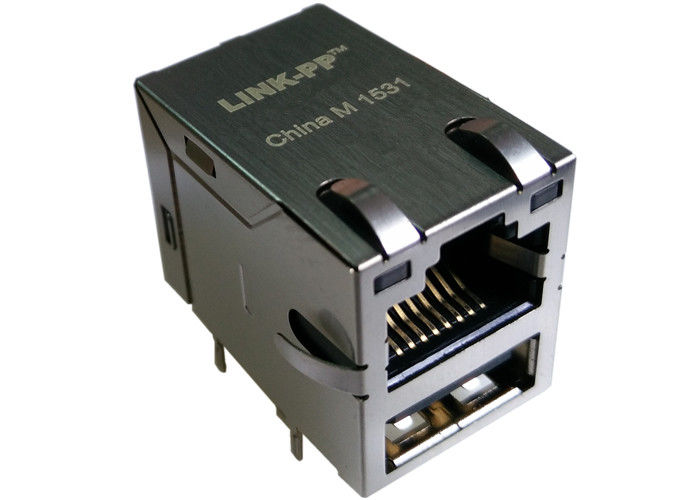

Stacked RJ45 USB Jack LPJE306AGNL

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: LPJE306AGNL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/60K

Price: $0.11-$24

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 180K/Month

Get Best Price
Highlight:

stacked rj45 connectors

,

rj45 usb connector combo

Specification:
LPJE306AGNL
Part No:
LPJE306AGNL
Indicator:
LED Flexible
Category:
Cat5/5e
Mounting:
Thru-Hole
Samples:
Available
Specification:
LPJE306AGNL
Part No:
LPJE306AGNL
Indicator:
LED Flexible
Category:
Cat5/5e
Mounting:
Thru-Hole
Samples:
Available
Stacked RJ45 USB Jack LPJE306AGNL

Stacked RJ45 USB Jack LPJE306AGNL



  • Rj45 USB Connector Combo
  • LPJE306AGNL
  • Rj45+1USB Connectors
  • Cat5/5e
  • Compatible to 10/100Mbps or 10/100/1000Mbps Ethernet Transformers/filter


NOTES:Electrical:
1.Voltage:125VAC RMS.
2.Current Rating:1.5A.
3.Contact Resistance:30 Millohms max.
4.Insulation Resistance:500 Megohms Min @500VDC.
5.Dielectric Strength:1000VAC RMS 50Hz 1Min.


6.RJ-45 Contact plating: Gold 6 micro-inches min.
In contact area
USB Contact plating: Gold flash

7.Gold Plating:(Gold Flash;1.5;3;6;15;30;50)U" Inch
8.Wave solder temperture: 230℃ to 250℃,5~10 Sec.

MECHANICAL:
1.Housing Material:Glass Filled Polyester UL94V-0.
2.Contact Material:Phosphor Bronze %%C 0.45mm.
3.Plating:Gold Plating Over Nickel.
4.Operating:750 Cycles Min.
5.Shield 0.23mm Thickness Copper Alloy With Nickel
Plated.
6.PCB Retention Pre-Solder:1 LB Min.
Environmental:
1.Temperature Range:-45℃~+85℃.
2.Relative Humidity:90~95%(40±2℃)
