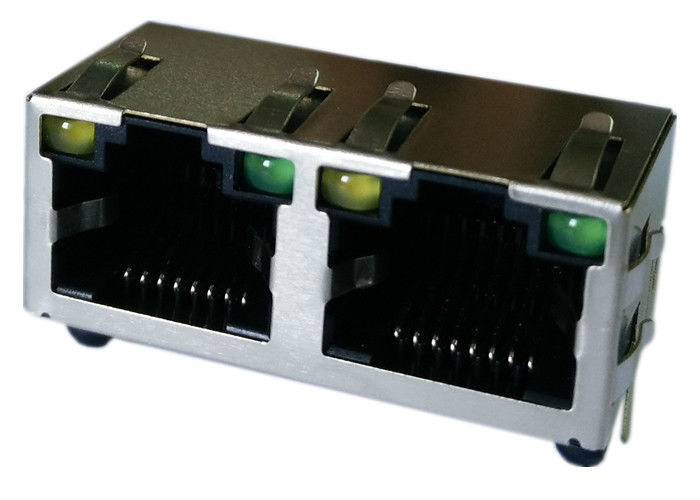

1 X 2 8P8C Multi - Port RJ45

China 1 X 2  8P8C Multi - Port RJ45 supplier

Large Image :  1 X 2 8P8C Multi - Port RJ45

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: SGS, UL,ISO9001:2008,Reach,RoHS
Model Number: LPJE201XAHNL

Payment & Shipping Terms:

Minimum Order Quantity: 1000
Price: Supportive
Packaging Details: Try
Delivery Time: 1-2 weeks
Payment Terms: T/T, Paypal,Western Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Specification: LPJE201XAHNL Part No: LPJE201XAHNL
Ethernet: Cat3,5,5e Gender: Female
Mounting: Thru-Hole Samples: Available

1x2 Port Rj45 8P8C Rj45 R/A Shield W/LEDs, Latch-up



  1. Ethernet pcb 8pin Rj45 connector With led
  2. Rj45 Female Pinout
  3. Shielded Cat5 Connectors
  4. Dual Port Female Rj45 Without Magnetics Transformers


PCB JACK Specification
1.Insulation Resistance:500MΩMIN @ 500 VDC
2.Withstanding Voltage:AC1000V 50Hz or
60Hz 1min.
3.Durability:600 Mating Circles MIN.
4.Gold Plating:
(Gold Flash;1.5;3;6;15;30;50)U" Inch
ENVIRONMENTALl
1.Storage Temperature: -40℃ To +85℃
2.Opertion Temperature: -40℃ To +85℃
3.Wave Soldering Temperature:
255℃~265℃(5~10Seconds)
4.RoHs Compliant.



1 X 2  8P8C Multi - Port RJ45 1 X 2  8P8C Multi - Port RJ45
