LP84812ANL Dual Port 48Pins Gigabit POE+ Ethernet Isolation SMT Transformer

Name: LP84812ANL Dual Port 48Pins Gigabit POE+ Ethernet Isolation SMT Transformer
Brand: LINK-PP
SKU: LP84812ANL
Price: 0.06 USD
Availability: InStock
Rating: 4.5 (138 reviews)

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: LP84812ANL

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                    poe magnetics, ethernet transformer


Pulse PN:	LP84812ANL	Family:	Ethernet POE+ Transformer
Interface:	Gigabit	Mounting:	Surface Mounting
Pins:	48 Pins	Samples:	Free Available

Pulse PN:	LP84812ANL
Family:	Ethernet POE+ Transformer
Interface:	Gigabit
Mounting:	Surface Mounting
Pins:	48 Pins
Samples:	Free Available

LP84812ANL Dual Port 48Pins Gigabit POE+ Ethernet Isolation SMT Transformer

LP84812ANL
Part Number	LP84812ANL
Feature	Cost-Effective POE+ Transformer 720mA & 57V Continuous
Manufacturer	LINK-PP
Description	Dual Port 48Pins Gigabit POE+ Ethernet Isolation SMT Transformer
Documents Available	PDF/3D/Step/IGS/Price
Quantity Available	3000000PCS/Month

POE+ Transformer 100/1000 BASE-T TRANSFORMER MODULES

ELECTRICAL SPECIFICATIONS @25 ℃
OCL:350uH Min @ 100KHz,0.2V,8mA DC BIAS
720mA Current Capability--It is suitable for IEEE 802.3at
LL:0.5uH Max @100KHz,0.2V
Cw/w:25PF TYP @100KHz,0.2V
DCR:1.4 Ω Max
Turn Ratio:1CT:1CT(TX)/1CT:1CT(RX)±2%

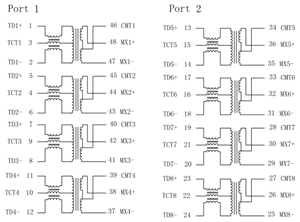

Polarity:2-23,5-20,8-17,11-14 In-Phase
Insertion Loss : 0.3-100MHz -1.1dB Max(TX/RX)
Return Loss : 1-30MHz -16dB Min
40MHz -16dB Min
50MHz -14.1dB Min
60MHz -12.5dB Min
80MHz -10dB Min
Cross Talk: 30MHz -35.8dB Min
60MHz -30.8dB Min
100MHz -28.0dB Min
Common Mode Rejection: 0.3-30MHz -40 dB Min(TX/RX)
60MHz -35dB Min(TX/RX)
80-100MHz -30dB Min(TX/RX)
Isolation:1500Vrms 1mA 60Sec
OPERATING TEMPERATURE: -40 ℃ TO +85 ℃ .
Storage Temperature Range: -40 ℃ TO +85 ℃

Dual Port Gigabit POE+ Magnetics
