Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: LP6080NL
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specifications: |
LP6080NL |
Lan Standard: |
IEEE 802.3af/at |
Mounting: |
SMD |
Apllication: |
100/1000base-T POE(+) |
Dimension: |
28x15.40x7.00mm |
Temperature: |
- 40℃ TO + 85℃ |
Archivi Disponibil: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specifications: |
LP6080NL |
Lan Standard: |
IEEE 802.3af/at |
Mounting: |
SMD |
Apllication: |
100/1000base-T POE(+) |
Dimension: |
28x15.40x7.00mm |
Temperature: |
- 40℃ TO + 85℃ |
Archivi Disponibil: |
PDF/3D/ISG/Stp/Step/Datasheet |
Product Features:

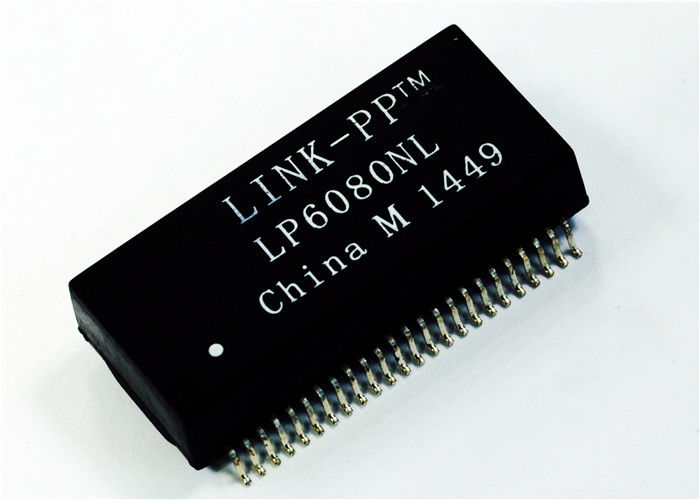

LP6080NL Dual 1000Base-T POE Magnetic Transformer
IEEE802.3af/at Compliant
RoHS & UL Certificate
100% Electrical Testing
1500Vrms Hi-Pot
Patented Open Frame Construction
| Mounting | Surface Mount |
| Family | 100/1000M POE/POE+ Magnetics |
| Transformer Type | Isolation Transformer |
| Minimum Crosstalk | -40@100MHz dB |
| Lead Style | Gull Wing |
| Package Type | SMD |
| Maximum OCL Inductance | 0.35 mH |
| Maximum Isolation Voltage | 1500 Vrms |
| Minimum CMRR | -40@1MHz to 100MHz dB |
| Minimum Return Loss | -10@100MHz dB |
| Turns Ratio | 1:1 |
| Operating Temperature | -40 to 85 °C |
| Packaging | Tape and Reel |
| Maximum Insertion Loss | -1.1@1MHz to 100MHz dB |
| Product Length | 28.00 mm |
