Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO

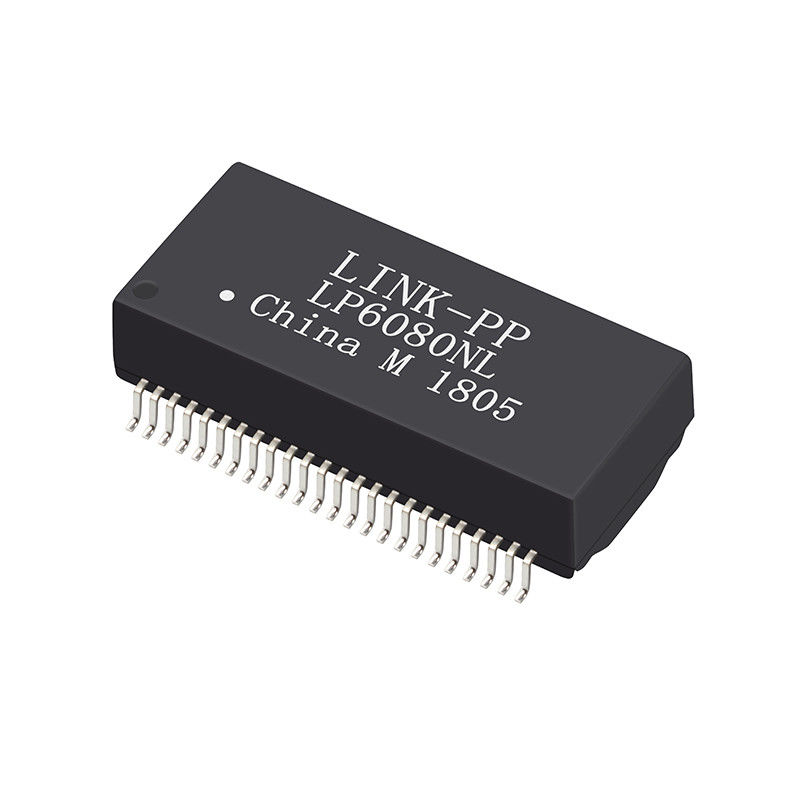

Model Number: LP6080NL
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.08-$2.2
Packaging Details: Reel
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Item: |
LAN-Ethernet Transforme |
Number Of Channels/Ports: |
2 Port |
Pin Number: |
48 Pins |
Turns Ratio: |
1:1 |
Termination Style: |
SMD/SMT |
Data Rate: |
1000BASE-T |
Samples: |
Free Offer |
Equivalent Rf: |
H6101NLT = LP6080NL |
Item: |
LAN-Ethernet Transforme |
Number Of Channels/Ports: |
2 Port |
Pin Number: |
48 Pins |
Turns Ratio: |
1:1 |
Termination Style: |
SMD/SMT |
Data Rate: |
1000BASE-T |
Samples: |
Free Offer |
Equivalent Rf: |
H6101NLT = LP6080NL |
Specifications of LAN-Ethernet Transformer:
| Part Status | Active |
|
Compatible Part Number |
Pulse H6101NLT |
|
Series |
LAN 10/100/1000 Base-T Transformers |
|
Number of Channels |
Dual |
| Application | ETHERNET TRANSFORMER/CHOKE |
|
Data Rate |
1000BASE-T |
|
Number of Terminals |
48 |
|
Lead Style |
Gull Wing |
| Mounting | Surface Mount |
|
Minimum Operating Temperature |
0°C |
| Maximum Operating Temperature | 70°C |
|
Length |
27.81 mm |
|
Width |
15.24 mm |
| Height | 7.24 mm |
| Frequency Range | 1 MHz to 125 MHz |
| Inductance | 350 uH |
| Maximum DC Resistance | 300 mOhms |
| High Potential | 1500Vrms |
| Minimum Crosstalk (dB) | -50@1MHz |
| Minimum CMRR (dB) | -50@2MHz |
| Minimum Return Loss (dB) | -16@1MHz to 40MHz |
| Maximum Insertion Loss (dB) | -1.2@100KHz |
